Discontinued

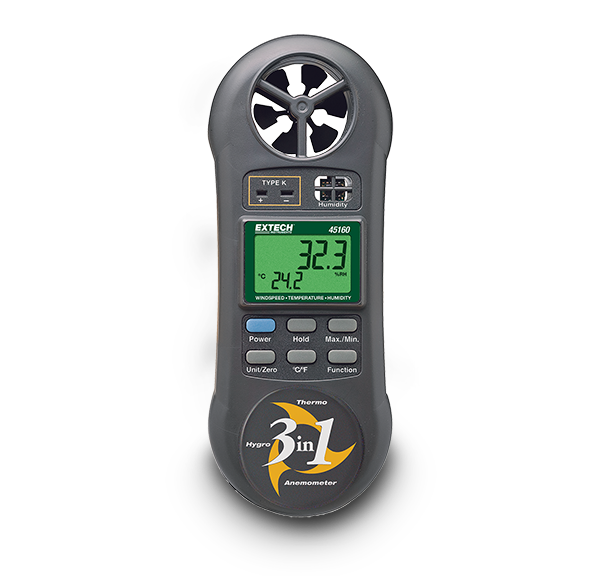

Extech 45160
3-in-1 Humidity, Temperature and Airflow meter
The Extech 45160 is a rugged 3-in-1 meter that measures humidity, temperature and air velocity. High temperature measurements can be made using the Type K thermocouple input. Features include data hold, min/max, auto power off with disable, and low battery indication. Comes complete with wrist strap and 9 V battery.
Specifications
| General | |
|---|---|
| Air Velocity (ft/min) | 80 to 5910 ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±3% |
| Air Velocity (ft/min) Max Resolution | 10ft/min |
| Air Velocity (km/h) | 1.4 to 108km/h |
| Air Velocity (km/h) Basic Accuracy | ±3% |
| Air Velocity (km/h) Max Resolution | 0.1km/h |
| Air Velocity (knots) | 0.8 to 58.3 knots |
| Air Velocity (knots) Basic Accuracy | ±3% |
| Air Velocity (knots) Max Resolution | 0.1knots |
| Air Velocity (m/s) | 0.4 to 30m/s |
| Air Velocity (m/s) Basic Accuracy | ±3% |
| Air Velocity (m/s) Max Resolution | 0.1m/s |
| Air Velocity (mph) | 0.9 to 67MPH |
| Air Velocity (mph) Basic Accuracy | ±3% |
| Air Velocity (mph) Max Resolution | 0.1MPH |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature (Air) | 32 to 122°F(0 to 50°C) |
| Temperature (Air) Basic Accuracy | ±2.5°F/±1.2°C |
| Temperature (Air) Max Resolution | 0.1°F/0.1°C |
| Temperature (Type K) Max Resolution | -148° to 2372°F (-100° to 1300°C ) |
| Temperature (Type N) | ±(1% of reading +2°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1°F/ 0.1°C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.1 × 2.4 × 1.3" (156 × 60 × 33mm) |
| Power | 1 × 9V battery |
| Vane | 1.2" (31mm) |
| Warranty | 2 years |
| Weight | 5oz (160g) |
