Discontinued
Extech AUT20
20A Current Tester

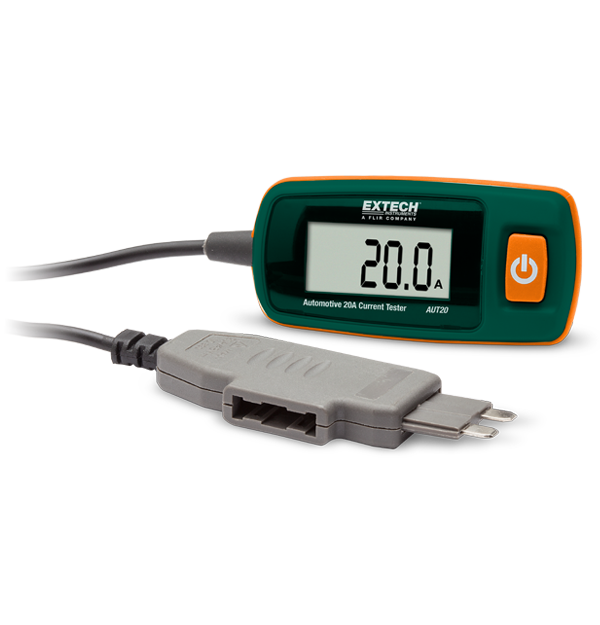

The Extech AUT20 is an automotive 20 A Current Tester and ATC fuse. The ATC-blade connectors plug directly into the fuse block for ease of use. It has a measuring range of 20 A/48 VDC (10 seconds max), with 10 mA resolution. Includes one 12 V A23G battery.
Specifications
| General | |
|---|---|
| Cable Length | 71cm (2.3 ft.) |
| DC Current | 0 to 20A DC |
| DC Current Basic Accuracy | ±(2.0% of reading + 2 digits) |
| DC Current Max Resolution | 10mA |
| DC Voltage | 48V DC |
| Detection Distance | <0.2" |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 159 × 25mm (6.25 × 1") |
| Power | 1 × A23G (12V) battery |
| Warranty | 2 years |
| Weight | 42g (1.5 oz) |
Resources & Support
Certification
Extech AUT20 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT20 AUT20M User Manual GB
