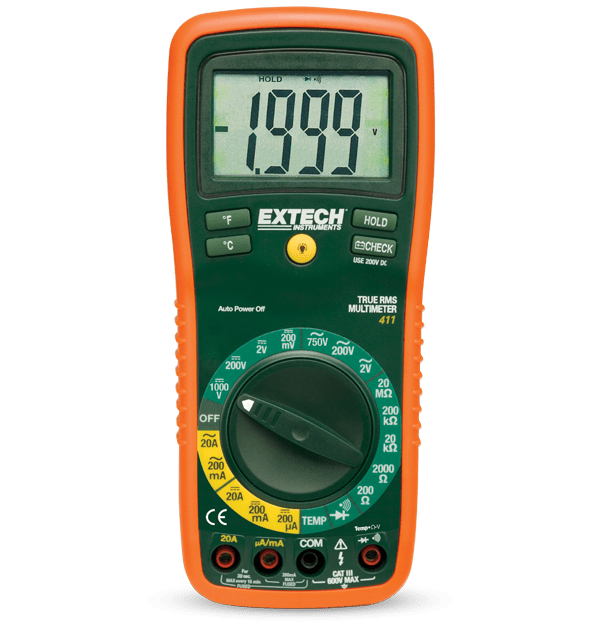

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
Specifications
| General | |
|---|---|
| AC Current | 0.1mA to 20A |
| AC Current Basic Accuracy | ±0.5% |
| AC Voltage | 1mV to 750V |
| AC Voltage Basic Accuracy | ±0.5% |
| Continuity | Yes |
| DC Current | 0.1µA to 20A |
| DC Current Basic Accuracy | ±0.5% |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±0.3% |
| Diode Test | Yes |
| Resistance | 0.1Ω to 20MΩ |
| Temperature [Type K] Max Resolution | -4 to 1382 °F (-20 to 750 °C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | UL |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V, CATIV - 1000V |
| Warranty | 2 years |
| Weight | 0.75lbs (342g) |
Resources & Support
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
