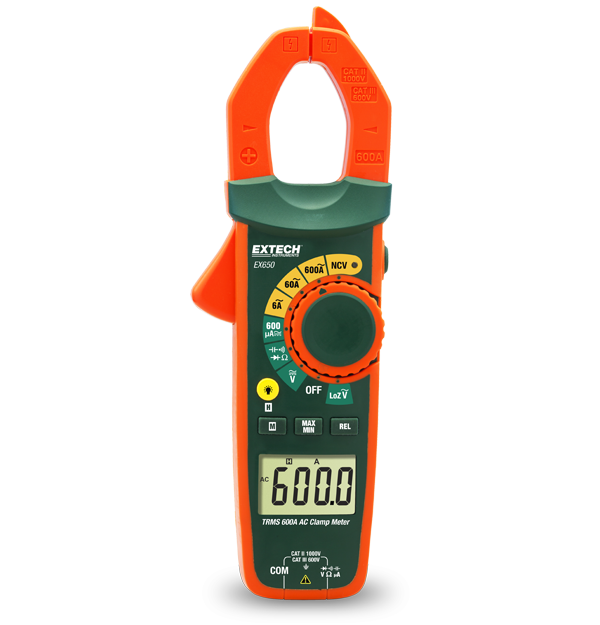

Extech EX650
600A True RMS AC Clamp Meter + NCV
The Extech EX650 is a 600A True RMS AC Clamp Meter. It also measures AC/DC voltage, resistence, capacitance, continuity/diode test and has an NCV detector. The EX650 has a 3 cm (1.18 in) jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function, auto power off, and a convenient LED worklight. Complete with test leads and 3 AAA batteries.
Specifications
| General | |
|---|---|
| AC Current | 6A, 60A, 600A |
| AC Current Basic Accuracy | ±2.5% of reading |
| AC Current Max Resolution | 0.001A |
| AC Microcurrent | 600µA |
| AC Microcurrent Max Resolution | 0.1µA |
| AC Voltage | 750V |
| AC Voltage Basic Accuracy | ±1.2% of reading |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 60mF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Microcurrent | 600µA |
| DC Microcurrent Max Resolution | 0.1µA |
| DC Voltage | 1000V |
| DC Voltage Basic Accuracy | ±0.8% of reading |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Jaw Size | 1.18" (30mm), conductors up to 350MCM |
| Non-Contact Voltage (NCV) Detector | 100 to 1000VAC |
| Resistance | 60MΩ |
| Resistance Max Resolution | 0.1Ω |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 9 × 3 × 1.6" (228 × 77 × 41mm) |
| Power | 3 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V, CATII - 1000V |
| Warranty | 3 years |
| Weight | 9.4oz (265g) |
