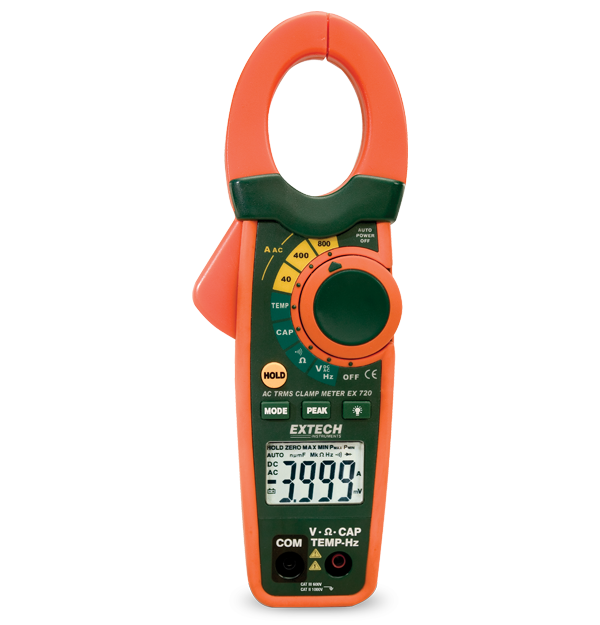

Extech EX720
800A AC Clamp Meter
The Extech EX720 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX720 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX720 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and belt holster.
Specifications
| General | |
|---|---|
| AC Current | 0.01 to 800A |
| AC Current Basic Accuracy | ±2.5% |
| AC Voltage | 0.1mV to 600V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000µF |
| Continuity | Yes |
| DC Voltage | 0.1mV to 600V |
| DC Voltage Basic Accuracy | ±1.5% |
| Diode Test | Yes |
| Frequency | 0.001 to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.2" (30mm), conductors up 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature (Type K) Max Resolution | -4 to 1400 °F (-20 to 760 °C) |
| Temperature (Type N) | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 10.7 oz (303g) |
