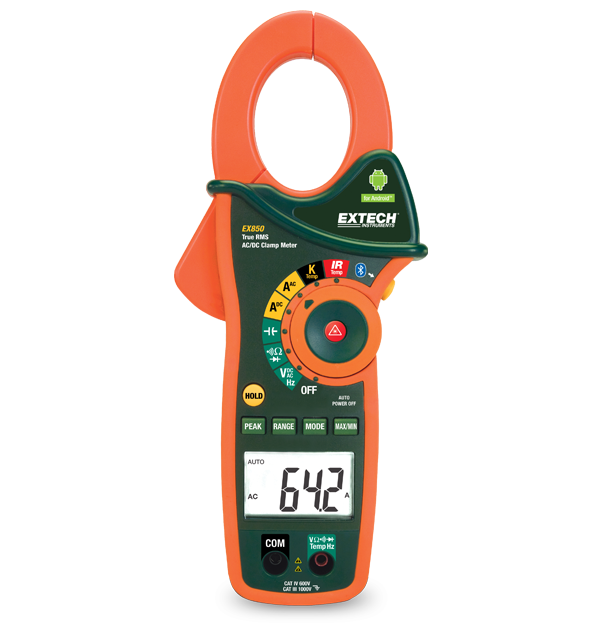

Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®
The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
Specifications
| General | |
|---|---|
| AC Current | 0.1 to 1000A |
| AC Current Basic Accuracy | ±2.8% |
| AC Voltage | 0.1mV to 1000V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000µF |
| Continuity | Yes |
| DC Current | 0.1 to 1000A |
| DC Current Basic Accuracy | ±2.8% |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±2.8% |
| Diode Test | Yes |
| Frequency | 0.001kHz to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature (IR) Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature (IR) Max Resolution | ±2.0% of reading or ±4°F/±2°C |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 760°C) |
| Temperature (Type N) | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 Years |
| Weight | 13.6oz (386g) |
