Discontinued

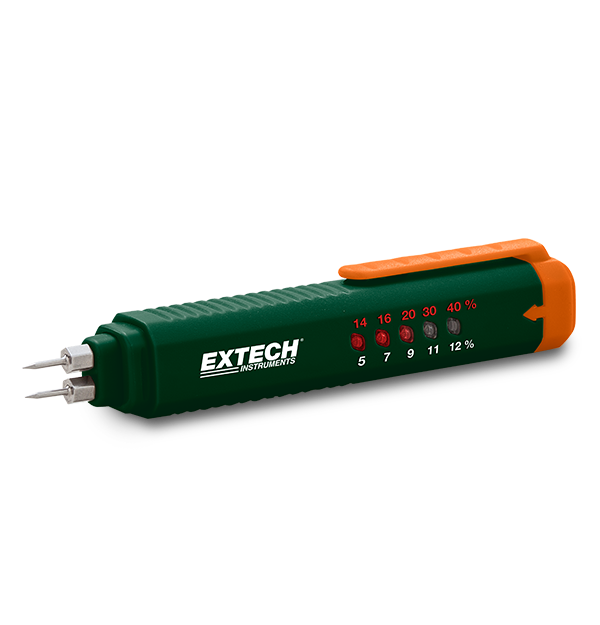

Extech MO25
Moisture Pen
The Extech MO25 is a lightweight, pen-styled compact moisture meter for wood and building materials. After selecting one of ten moisture levels, the user is signaled via audible alert and LED indicator lights that the object being tested surpasses the given threshold. This moisture pen features a data hold function, battery level check and automatically powers off when not in use. Use on wall board, sheetrock, cardboard, plaster, concrete, and mortar. Complete with two pins (installed), protective cap, built-in pocket clip, and one AAA battery.
Specifications
| General | |
|---|---|
| Measurement Principle | Electrical resistance |
| Sensor Type | Replaceable threaded contact pins |
| WME Moisture Content (Pin) | 5 to 40% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.4 × 1.0 × 0.8" (136 × 25 × 21mm) |
| Display | Dual scale red and green LEDs |
| Power | 1 × AAA (1.5VDC) battery |
| Warranty | 2 years |
| Weight | 1.2oz (33g) without battery |
Resources & Support
Certification
Extech MO25 Declaration of Conformity
Datasheet
Extech MO25 Datasheet
