Extech SDL900
AC/DC Magnetic Meter/Datalogger

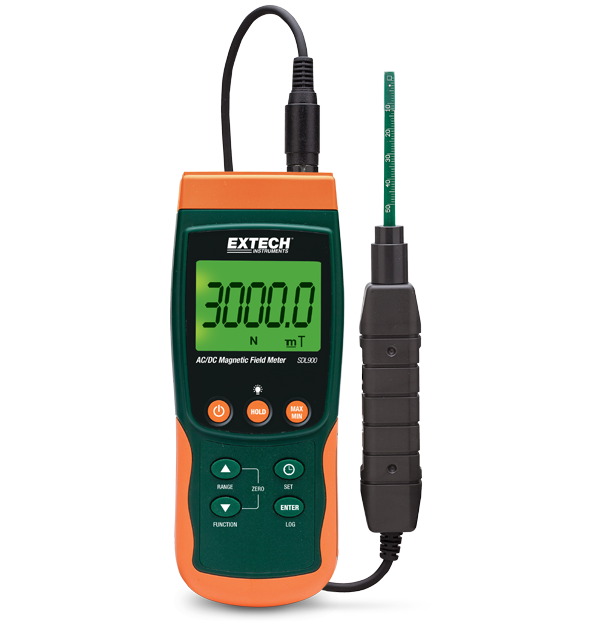

The SDL900 is an AC/DC Magnetic Meter and Datalogger with automatic temperature compensation. The SDL900 utilizes Hall effect sensor. This meter features an adjustable data sampling rate from 1 to 3600 seconds. Complete with uniaxial magnetic probe sensor with protective cover, SD memory card, 6 AA batteries and hard carrying case.
Specifications
| General | |
|---|---|
| Electromagnetic Field (Gauss) | AC: 1500.0G, 15,000G; DC: 3000.0G, 30,000G |
| Electromagnetic Field (Gauss) Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field (Gauss) Max Resolution | 0.1G, 1G |
| Electromagnetic Field (Tesla) | AC: 150.00mT, 1500.0mT; DC: 300.00mT, 3000.0mT |
| Electromagnetic Field (Tesla) Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field (Tesla) Max Resolution | 0.01mT, 0.1mT |
| Frequency Bandwidth | 50Hz/60Hz |
| Memory | SD card (included) |
| Number of Axes | Uniaxial |
| Sampling Rate | 1 to 3600 seconds |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.1 × 2.9 × 1.9" (182 × 73 × 48mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 10.7oz (303g) |
Resources & Support
User Manual
Extech SDL900 User Manual
Datasheet
Extech SDL900 Datasheet
User Manual
Extech SDL900 User Manual GB
Certification
Extech SDL900 Declaration of Conformity
