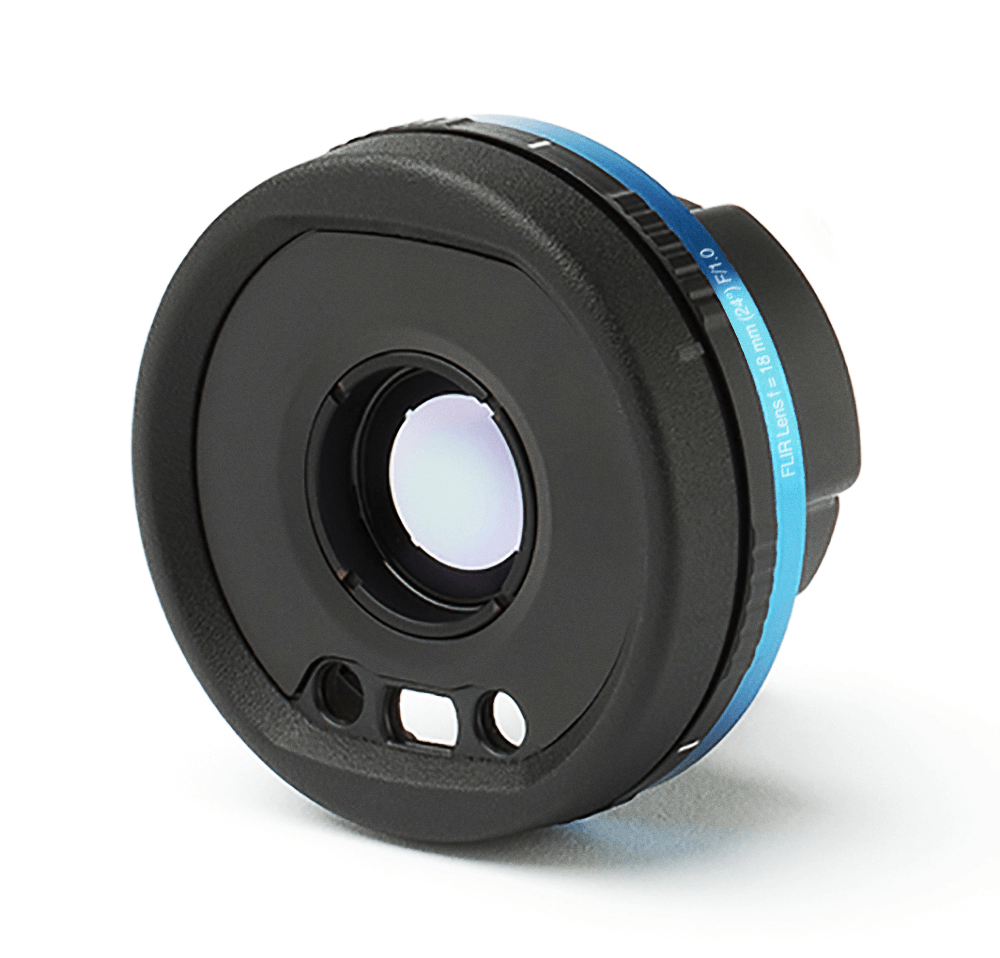

IR lens, f=18 mm (24°) f/1.0 (T300443)
IR Lens for FLIR A700 Cameras
f=18 mm (24°) f/1.0 IR lens for the FLIR A700 cameras where top of the class image quality is required.
Specifications
| Imaging & Optical | |
|---|---|
| Field of View | 24° × 18° |
| Focal Length | 18 mm (0.71 in) |
| F_number | 1.04 |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Focus Distance with MSX | 0.5 m (1.6 ft) |
| Spatial resolution (IFOV) | 0.65 mrad/pixel |
| General | |
|---|---|
| Size | 45.4 × 72 mm (1.79 ×2.83 in) |
| Weight | 0.140 kg (0.31 lb) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
