VS80 Plumbing Spool and Camera Probe (VS80C10-25RM)
10 mm × 25 m long

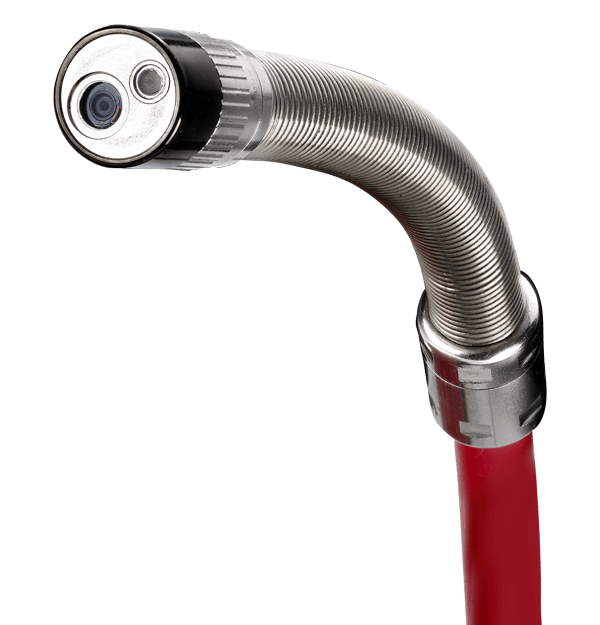

Plumbing Spool and Camera Probe for the FLIR VS80 High-Performance Videoscope
Specifications
| Imaging & Optical | |
|---|---|
| Depth of Field | 10 mm to infinity |
| Diameter | 10 mm |
| Field of view (FOV) | 87.1° |
| Frame Rate | 30 fps |
| Resolution | 640 × 480 |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UKCA, RCM |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Warranty | 3 years |
| General | |
|---|---|
| Probe Length | 25 m |
Resources & Support
User Manual
FLIR VS80–LCT-1 Pipe Locator Receiver User Manual
User Manual
FLIR VS80 Camera Probe User Manual
User Manual
FLIR VS80C10-25RM User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
