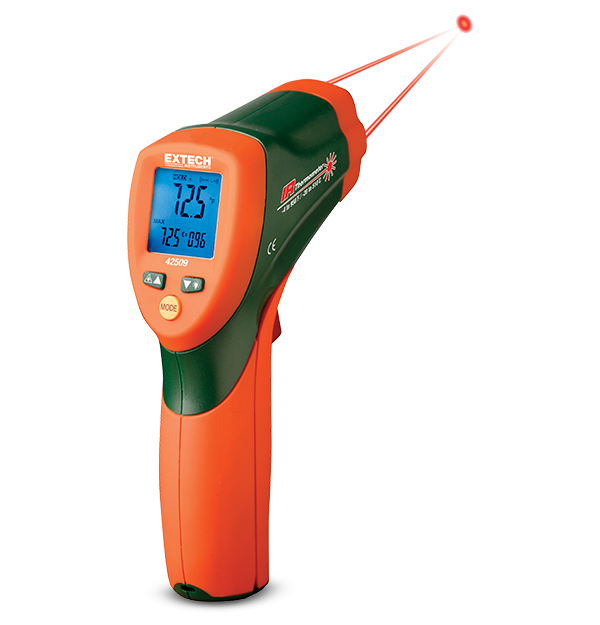

Extech 42509
Dual Laser IR Thermometer with Color Alert
The Extech 42509 is a Dual Laser IR Thermometer with Color Alert. This meter has dual lasers for quick accuracy in target areas as well as programmable high/low alarms. It measures up to 510°C (950°F). Features an automatic blue backlit dual LCD display and adjustable emissivity which increases measurement accuracy for different surfaces. Complete with case and 9 V battery.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Repeatability | ±0.5% or 1.8 °F/1 °C |
| Targeting | dual laser |
| Temperature [IR] Basic Accuracy | -4 to 950 °F (-20 to 510 °C) |
| Temperature [IR] Max Resolution | ±(1% of reading + 1 °C) |
| Temperature [RTD] | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.7 × 4 × 1.7" (146 × 104 × 43mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 5.7oz (163g) |
Resources & Support
User Manual
Extech 42509 User Manual GB
Datasheet
Extech 42509 Datasheet
Certification
Extech 42509 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
