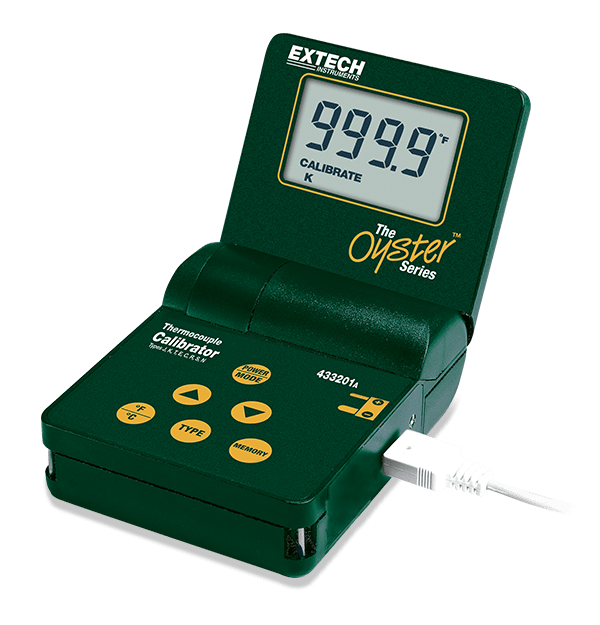

Extech 433201
Multi-Type Calibrator Thermometer
The Extech 433201 Multi-Type Calibrator Thermometer sources and measures 8 thermocouple types: J, K, T, E, C, R, S, and N. It displays output in terms of mV or in °C/°F based on its built in thermocouple tables. Five stored calibration values allow for quick calibrations. The Oyster case with a flip-up display is ideal for handheld or benchtop applications. Complete with a 9 V rechargeable battery, Type K thermocouple cable, copper calibration cable, and a 115 V AC adaptor/charger.
Specifications
| General | |
|---|---|
| CJC (Cold Junction Compensation) | 0.03 °C/ °C (0.02 °F/ °F) |
| Input Impedance | 10MΩ |
| Sampling Rate | 4 times/second |
| Temperature (Type C) Basic Accuracy | 32 to 3272 °F (0 to 1800 °C) |
| Temperature (Type C) Max Resolution | 0.15% of reading ±1° |
| Temperature (Type E) | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type E) Basic Accuracy | 58 to 1382 °F (-50 to 750 °C) |
| Temperature (Type E) Max Resolution | 0.15% of reading ±1° |
| Temperature (Type J) | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type J) Basic Accuracy | -58 to 1830 °F (-50 to 1000 °C) |
| Temperature (Type J) Max Resolution | 0.15% of reading ±1° |
| Temperature (Type K) Basic Accuracy | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type K) Max Resolution | -58 to 2498 °F (-50 to 1370 °C) |
| Temperature (Type N) | 0.15% of reading ±1° |
| Temperature (Type N) Basic Accuracy | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type N) Max Resolution | -58 to 2372 °F (-50 to 1300 °C) |
| Temperature (Type R) | 0.15% of reading ±1° |
| Temperature (Type R) Basic Accuracy | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type R) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type S) | 0.15% of reading ±1° |
| Temperature (Type S) Basic Accuracy | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type S) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type T) | 0.15% of reading ±1° |
| Temperature (Type T) Basic Accuracy | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Temperature (Type T) Max Resolution | -184 to 752 °F (-120 to 400 °C) |
| Temperature [IR] | 0.15% of reading ±1° |
| Temperature [Type K] | 0.1° (up to 999.9) or 1° (over 999.9 °) |
| Voltage | -5.00mV to +55.00mV |
| Voltage Basic Accuracy | 0.01mV |
| Voltage Max Resolution | ±2 digits |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.8 × 4.2 × 1.8" (96 × 108 × 45mm) |
| Warranty | 2 years |
| Weight | 17oz |
