Discontinued

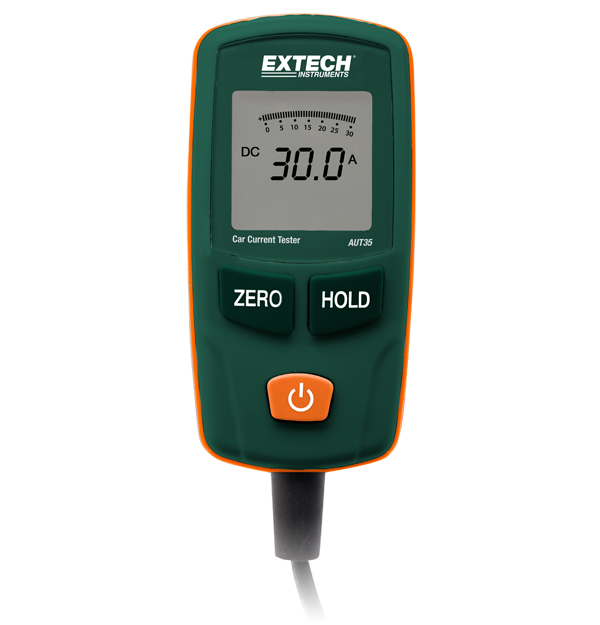

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
Specifications
| General | |
|---|---|
| DC Current | 0 to 30A DC |
| DC Current Basic Accuracy | 100mA |
| DC Current Max Resolution | ±(2.0% of reading + 2 digits) |
| DC Voltage | 48V DC |
| Detection Distance | <0.2" |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 68g (0.15 lbs.) |
Resources & Support
User Manual
Extech AUT35 User Manual GB
Certification
Extech AUT35 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
Export Restrictions
