Discontinued

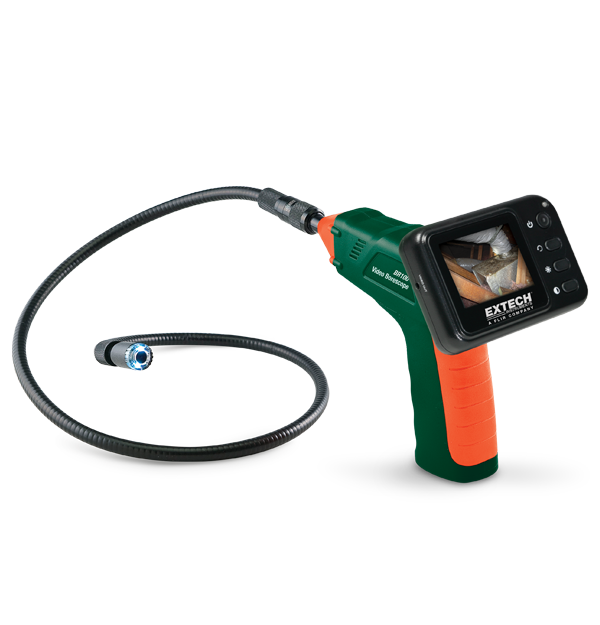

Extech BR100
Video Borescope Inspection Camera
The Extech BR100 is a Video Borescope Inspection Camera with a 17 mm (0.7 in) camera diameter and 61 mm (2.4 in) color TFT LCD Monitor. It can be ideal for applications such as home, HVAC, automotive, industrial, aerospace, and security inspections. Features a glare free, close-up field of view and a display which detaches for easy storage. Complete with 4 AA batteries, extension tools (mirror, hook, magnet), video output jack, and hard case.
Specifications
| General | |
|---|---|
| Field of view (FOV) | 50° |
| Focus Distance | 5.9" to 9.8" (15 to 25cm) |
| Minimum Bend Radius | 2.36" (60mm) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Handle: 7.3 × 5.7 × 1.6" (186 × 145 × 41mm); Monitor: 3.9 × 2.7 × 1.8" (100 × 70 × 30mm) |
| Display | 2.4" TFT (480 x 234 pixels) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | Handle: 18.7oz (530g); Monitor: 4.9oz (140g) |
Resources & Support
Certification
Extech BR100 Declaration of Conformity
User Manual
Extech BR100 User Manual
Datasheet
Extech BR100 Datasheet
Export Restrictions
