Discontinued

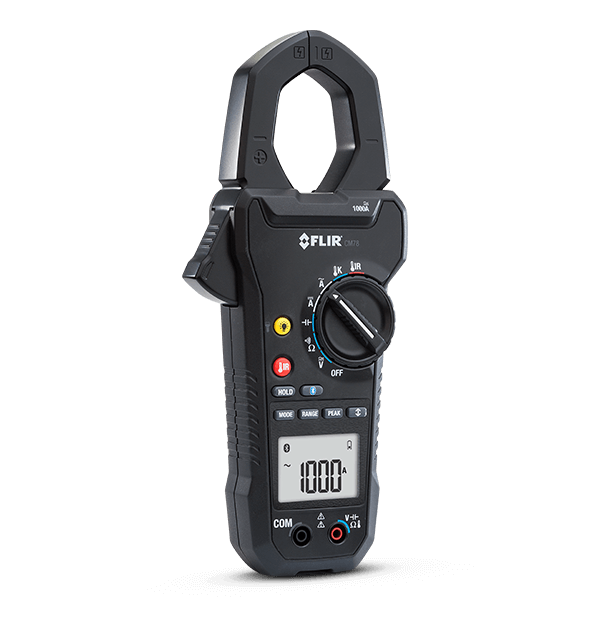

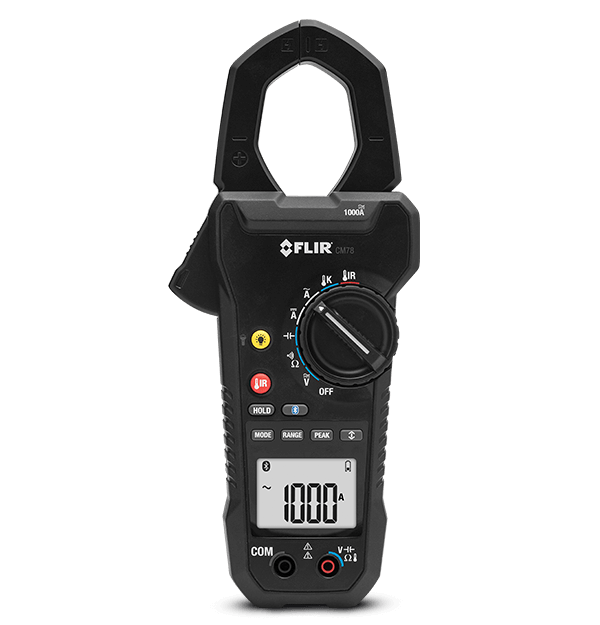

FLIR CM78
1000 Amp Clamp with IR Thermometer

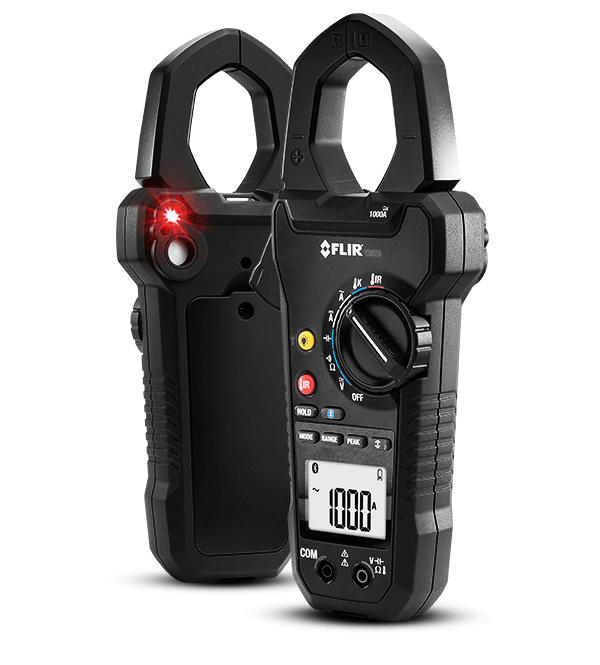

The FLIR CM78 is a True RMS industrial clamp meter for the electrician who works on high-powered equipment and temperature systems and needs a safe, capable combination tool. An integrated IR thermometer provides fast non-contact measurements on panels, conduits, and motors. FLIR Tools Mobile connects the FLIR CM78 to your compatible smartphones and tablets via Bluetooth®, and METERLiNK® technology wirelessly integrates electrical readings on your infrared image with FLIR thermal cameras.
YOUR GO-TO ELECTRICAL COMBINATION TOOL
Combines a True RMS digital multimeter, non-contact clamp meter, and spot IR thermometer into one tool.
Take accurate AC/DC measurements safely and quickly on high-powered equipment or complex machinery, and verify readings with the Type-K thermocouple.
Features Bluetooth METERLiNK to wirelessly embed data into thermal images from FLIR infrared cameras, or instantly share readings with clients.
Specifications
| Highlighted | |
|---|---|
| Jaw Opening | 42 mm (1.7 in, 2000MCM) |
| AC/DC Voltage | Range 1000 V / Basic Accuracy +/- 1.5% |
| Safety Category | CAT IV-600V, CAT III-1000V |
| Measurement & Analysis | |
|---|---|
| AC/DC Current Range | Range 1000 A / Basic Accuracy +/- 2.5% |
| AC/DC Voltage | Range 1000 V / Basic Accuracy +/- 1.5% |
| Capacitance | Range 4.000 mF / Basic Accuracy +/- 3% |
| Frequency | Range 4000 Hz / Basic Accuracy +/- 31.5 |
| IR Distance to Target Ratio | 8 : 1 in |
| Resistance | Range 40.00 MΩ / Basic Accuracy +/- 1.5% |
| Temperature [IR] | Range -4 to 518°F, -20 to 270°C / Basic Accuracy +/- 2% |
| Temperature [Type K] | Range -4 to 1400°F, -20 to 760°C / Basic Accuracy +/- 3% |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 32 ft (10 m) |
| Power | |
|---|---|
| Battery | 3 AA batteries; optional TA04 Li-Poly rechargeable battery |
| General | |
|---|---|
| Jaw Opening | 42 mm (1.7 in, 2000MCM) |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UL, FCC |
| Safety Category | CAT IV-600V, CAT III-1000V |
| Warranty | Limited Lifetime* |
