Discontinued

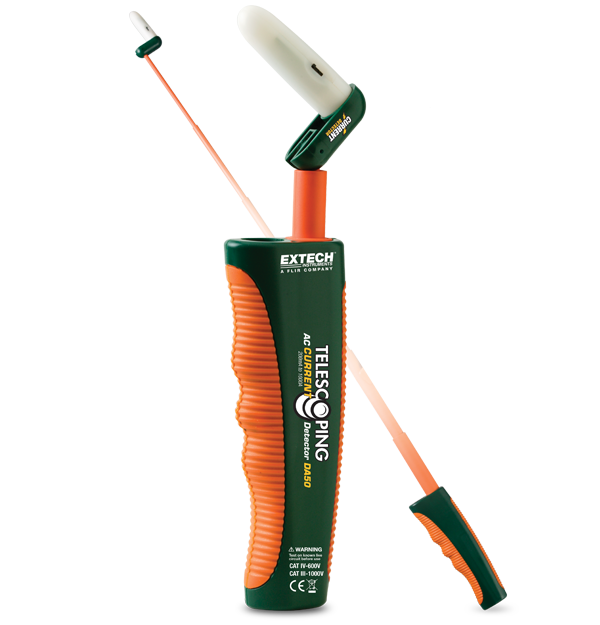

Extech DA50
Telescoping AC Current Detector
The Extech DA50 detects AC Current (200mA to 1000A) in shielded wires, wires behind walls, metal circuit breakers, and junction boxes. Telescoping probe extends to reach distance of 1 m (39.4 in). Comes with four LR44 button batteries and user guide.
Locate current in hidden wires and cables
Non-contact AC current range from 200 mA to 1000 A; for use on 50/60 Hz circuits
Detects through shielded wires, conduit, and metal circuit breaker or junction boxes
Sensitivity adjustment for locating wires/conduit through walls
Specifications
| General | |
|---|---|
| Audible/Visible Indication | Beeper, flashing LED |
| Current Detection (Non-Contact) | 200mA to 1000A AC |
| Detection Distance | 0.2" |
| Frequency Bandwidth | 50/60Hz |
| Sensitivity Adjustment | Yes |
| Additional Details | |
|---|---|
| Dimensions | 7.7 × 2.4 × 1.2" (195 × 62 × 30mm) |
| Power | 2 × LR44 (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 5.2oz (148g) |
