Discontinued

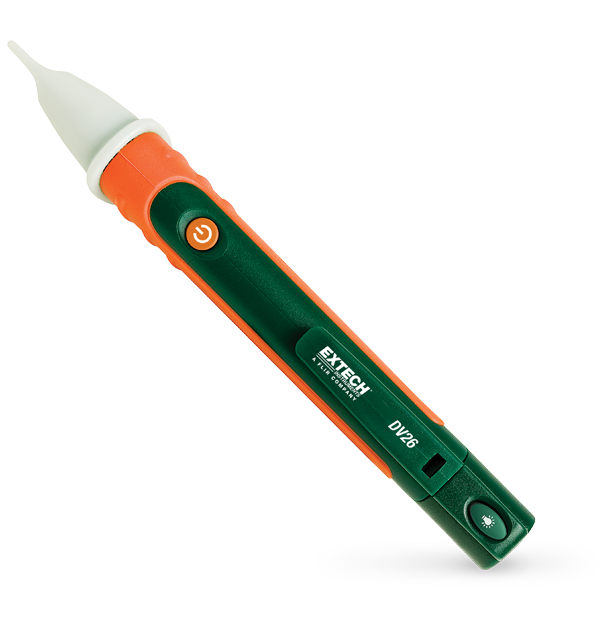

Extech DV26
Non-Contact Voltage Detector with Flashlight
The DV26 is a non-contact voltage detector with a built-in flashlight. It detects AC voltage from 100 to 1000 VAC without contact and alerts the user with LED's and audible beeping. The DV26 is built in a rugged double molded housing, has a CAT III 1000 V/ CAT IV 600 Volt safety rating and is complete with a year warranty and two AAA batteries.
Specifications
| General | |
|---|---|
| Audible/Visible Indication | Beeper, flashing LED |
| Built-In Flashlight | Yes |
| Frequency Bandwidth | 50/60Hz |
| Voltage Detection (Non-Contact) | 100 to 1000V AC |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 6.25 × 1" (159 × 25mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 1.5oz (42g) |
