Discontinued

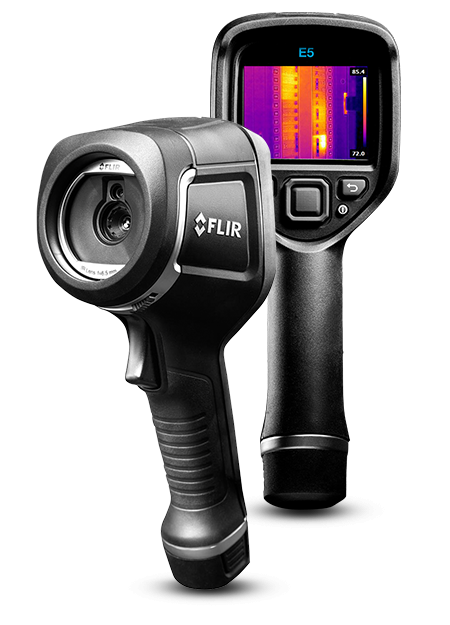

FLIR E5

Infrared Camera with MSX®

$1,590.00
BUY NOW

The FLIR E5 is a powerful thermal imaging tool for troubleshooting electrical, mechanical, and building problems. Find hidden issues quickly, easily, and safely–without the need for direct contact with equipment–with this 10,800 (120 × 90) pixel infrared resolution, focus-free camera. By providing thermal images along with accurate temperature measurements, the E5 is the ideal budget-friendly replacement for old-school IR thermometers.

Affordable Professional Thermal Imaging
From the hot/cold-spot measurements to the emissivity controls, E5 has the features you need to accurately identify problems.
With its crisp, 10,800 pixel detector and ±2% accuracy, the E5 offers the best image clarity at this affordable price.
A focus-free lens and simple button navigation to on-screen settings makes this camera easy to operate.

Specifications

Highlighted
IR Resolution 120 × 90 pixels
Thermal Sensitivity_NETD <0.10°C (0.27°F) / <100 mK
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view [FOV] 45° × 34°
Image Modes Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
Display 3.0 in. 320 × 240 color LCD
Imaging & Optical
Color Black and gray
Color palettes Black & white, iron, and rainbow
Detector Type Uncooled microbolometer
f number 1.5
Field of view [FOV] 45° × 34°
Focus Focus free
Image Frequency 9 Hz
Image Modes Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
IR Resolution 120 × 90 pixels
Minimum Focus Distance 0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging [MSX] IR image enhanced with visible camera detail
Screen EST Mode No
Spatial resolution [IFOV] 6.9 mrad
Spectral Range 7.5–13 µm
Thermal Sensitivity_NETD <0.10°C (0.27°F) / <100 mK
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Camera size [L x W x H] 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery 0.575 kg (1.27 lb.)
Object Temperature Range –20°C to 250°C (–4°F to 482°F)
Reflected apparent temperature correction Automatic, based on input of reflected temperature
Set_up Commands Local adaptation of units, language, date and time formats
User Interface
Display 3.0 in. 320 × 240 color LCD
Communication & Data Storage
AC Operation AC adapter, 90–260 VAC input, 5 VDC output to camera
File Formats Standard JPEG, 14-bit measurement data included
Interfaces USB Micro: Data transfer to and from PC and Mac device
WiFi N/A
Power
Charging system Battery is charged inside the camera or in specific charger.
Charging Time 2.5 hours to 90% capacity in camera. 2 hours in charger.
Power Management Automatic shut-down
Environmental & Certifications
Certifications UL, CSA, CE, PSE and CCC
EMC •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity [operating and storage] IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range –15°C to 50°C (5°F to 122°F)
Radio Spectrum N/A
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range –40°C to 70°C (–40°F to 158°F)
Vibration 2 g (IEC 60068-2-6)
General
List of Contents •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

Accessories

  1. FLIR Tools Mobile App
  1. Tool Belt (T911093)
  1. USB cable, USB-A to USB Micro-B (T198533)
  1. Battery Li-ion 3.6 V, 2.6 Ah, 9.4 Wh (T199422ACC)
  2. Battery Charger (T198531)
  3. Power Supply (T198534)
  4. Car Charger (T198532)
  1. Pouch for FLIR E-Series (T911689ACC)
  2. Pouch with Shoulder Strap (T198529)
