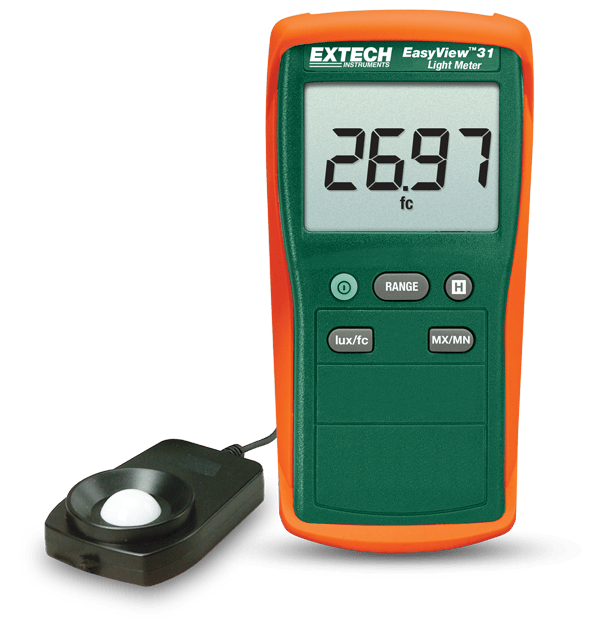

Extech EA31
EasyView™ Light Meter
The Extech EA31 EasyView™ Light Meter features a compact and rugged design with a large display. It measures to 20,000 Fc and 20,000 Lux in 4 ranges. It features zero function cosine, color corrected measurements, and an auto power off function to save battery life. The data hold function freezes readings on the display of min/max readings. The meter utilizes a precision silicon photo-diode sensor with a 0.9 m (3 ft) coiled cable for easy storage. Complete with built-in stand, remote sensor with protective cover, protective rubber holster, and 6 AAA batteries.
Specifications
| General | |
|---|---|
| Cosine and Color Corrected | Yes |
| Light (Foot Candle) | 20, 200, 2000, 20,000Fc |
| Light (Foot Candle) Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light (Foot Candle) Max Resolution | 0.01Fc |
| Light (Lux) | 20, 200, 2000, 20,000Lux |
| Light (Lux) Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light (Lux) Max Resolution | 1Lux |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 33mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.3oz (235g) |
