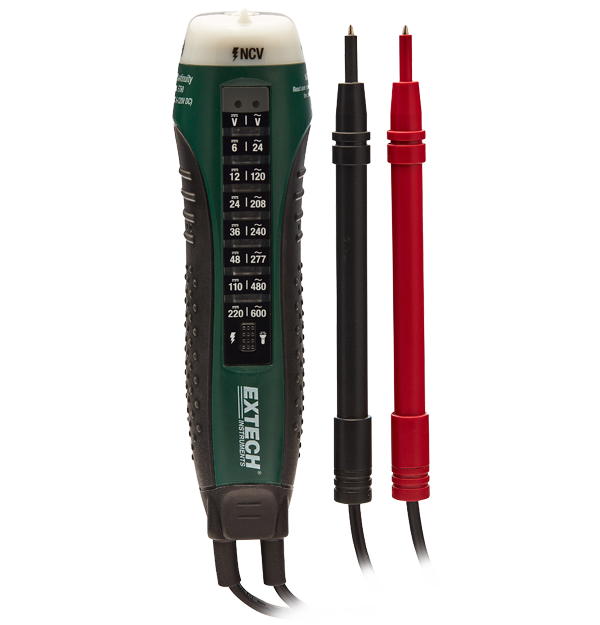

Extech ET60
Voltage and Continuity Tester
This easy-to-use voltage tester is designed with 7-range LED indicators that quickly shows the range of the AC and DC Voltage measured. The meter vibrates when Voltage is detected >85 V. Its built-in non-contact voltage detector function easily detects live voltages from 90 to 1000 V AC. The AC frequency bandwidth is from 45 to 66 Hz. Functions include continuity with audible and visual alert. Designed with a bright built-in flashlight and a rugged double molded housing with integrated test leads.
Specifications
| General | |
|---|---|
| Audible_Visible Indication | Beeper, flashing LED |
| Built_In Flashlight | Yes |
| Continuity | Yes |
| Frequency Bandwidth | 45 to 66Hz |
| Voltage Detection [Contact] | 24, 120, 208, 240, 277, 480, 600V AC; 6, 12, 24, 36, 48, 110, 220V DC |
| Voltage Detection [Non_Contact] | 90 to 1000V AC |
| Additional Details | |
|---|---|
| Certifications | ETL |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 60V |
| Warranty | 2 years |
Resources & Support
Datasheet
Extech ETxx Datasheet
User Manual
Extech ET60 User Manual
