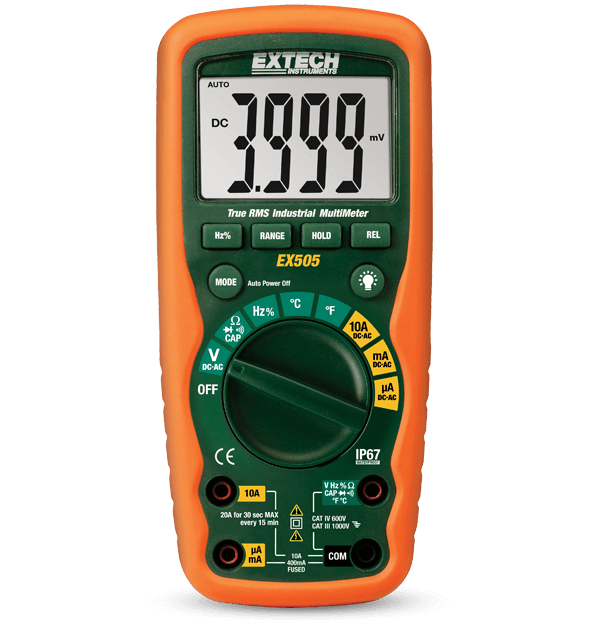

Extech EX505
11 Function Heavy Duty True RMS Industrial MultiMeter
This Heavy Duty True RMS industrial MultiMeter measures AC/DC Voltage (1000V) and Current (10A), Resistance (40Mohms), Capacitance (100 microFarads) , dual sensitivity Frequency (electric 1kHz/electronic 10MHz), and Type K Temperature (-4 to 1382 degrees F (-20 to 750 degrees C)) . It features a 4,000 count backlit LCD, 0.5% basic accuracy, Relative/Data Hold, and Auto Power off with disable. Comes complete with test leads, magnetic hanging strap, Type K bead wire Temperature probe, carrying case, and 9V battery.
Specifications
| General | |
|---|---|
| AC Current | 0.1µA to 10A |
| AC Voltage | 0.1mV to 1000V |
| Capacitance | 0.01nF to 100µF |
| Continuity | Yes |
| DC Current | 0.1µA to 10A |
| DC Voltage | 0.1mV to 1000V |
| Diode Test | Yes |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 5Hz to 1kHz Electronic: 0.001Hz to 10MHz |
| Resistance | 0.1Ω to 40MΩ |
| Temperature [Type K] Max Resolution | -4 to 1382°F (-20 to 750°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 4000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 3 years |
| Weight | 12.3oz (349g) |
