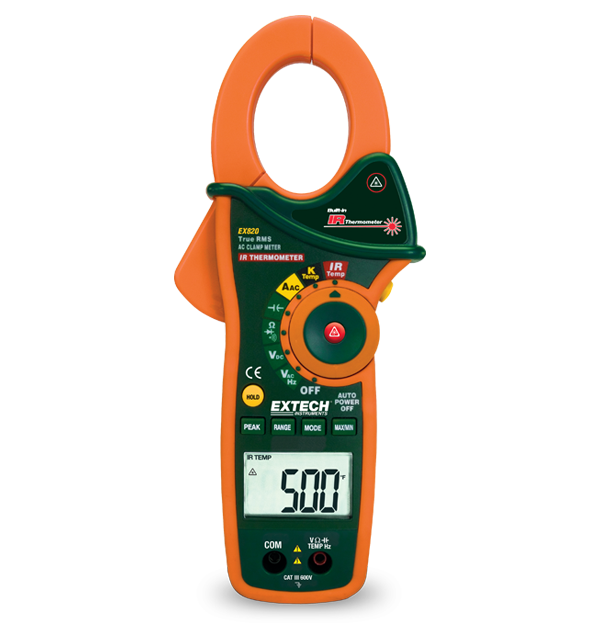

Extech EX820
1000A True RMS AC Clamp Meter with IR Thermometer
The Extech EX820 True RMS AC Clamp Meter features a built-in IR Thermometer with a laser pointer for non-contact surface measurements ranging from -50°C to 270°C (-58°F to 518°F). Clamp measures AC current up to 1000 Amp with a maximum resolution of 0.1 Amp. The 4.3 cm jaw fits around conductors up to 750 MCM. Peak hold captures motor inrush currents and other surges. Includes data hold and auto power off. Other functions consist of AC/DC voltage, resistance, a Type-K thermometer, capacitance, and frequency. Complete with test leads, Type-K temperature probe, 9 Volt battery, and a case.
Resources & Support
Datasheet
Extech EX8xx Datasheet
Certification
Extech EX820 Declaration of Conformity
User Manual
Extech EX820 User Manual
