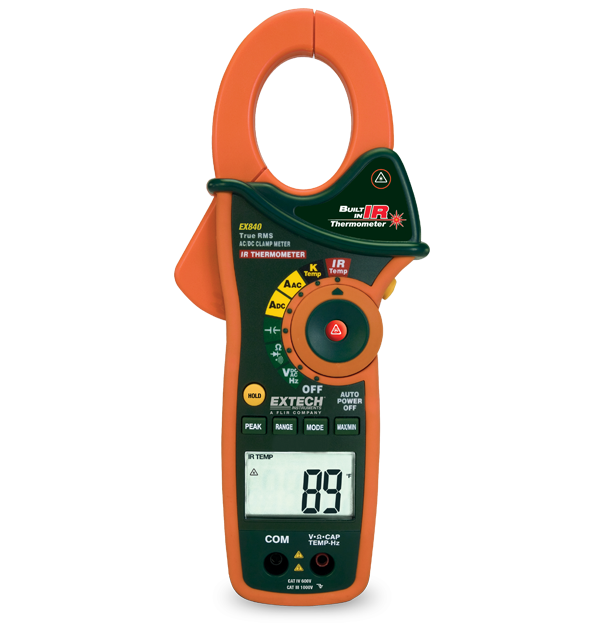

Extech EX840
1000A AC/DC True RMS Clamp/DMM + IR Thermometer
$370.00
This CAT IV True RMS clamp meter features a built-in IR thermometer with laser pointer for non-contact surface measurements from -58 to 518 °F (-50 to 270 °C). Clamp measures AC current up to 1000 Amp with a maximum resolution of 0.1 Amp. The 1.7-inch jaw fits around conductors up to 750MCM. Peak hold captures motor inrush currents and other surges. Data hold and auto power off functions. Other functions include AC/DC Voltage, resistance, Type K thermometer, capacitance and frequency. Complete with test leads, Type K temperature probe, 9 Volt battery and case.
Specifications
| General | |
|---|---|
| AC Current | 0.1 to 1000A |
| AC Current Basic Accuracy | ±2.8% |
| AC Voltage | 0.1mV to 1000V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000ΩF |
| Continuity | Yes |
| DC Current | 0.1 to 1000A |
| DC Current Basic Accuracy | ±2.8% |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±2.8% |
| Diode Test | Yes |
| Frequency | 0.001kHz to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature (IR) Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature (IR) Max Resolution | ±2.0% of reading or ±4°F/±2°C |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 760°C) |
| Temperature (Type N) | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CETIV- 600V |
| Warranty | 3 years |
| Weight | 13.6oz (386g) |
Resources & Support
Certification
Extech EX840 Declaration of Conformity
Datasheet
Extech EX840 Datasheet
User Manual
Extech EX840 User Manual
