Extech EX850
True RMS 1000A AC/DC Clamp Meter with Bluetooth®

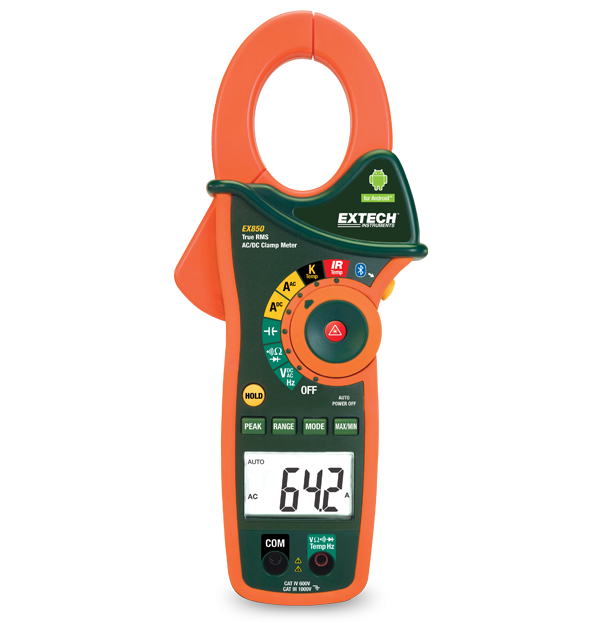

The Extech EX850 is a 1000 A True RMS AC/DC Clamp Meter with Bluetooth®, capable of transmitting key electrical readings to android mobile devices. The EX850 measures AC/DC current and voltage, resistance, capacitance, frequency, IR temperature, and continuity. This clamp meter has a 4.3 cm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM. The EX850 also has a 4000 count backlit LCD display, auto ranging and manual ranging button, as well as data hold, min/max, and auto power off functions. This product has a CAT IV 600 V safety rating and comes with CAT IV test leads, 9 V battery, general purpose Type K probe, user's manual, and pouch case.
Specifications
| General | |
|---|---|
| AC Current | 0.1 to 1000A |
| AC Current Basic Accuracy | ±2.8% |
| AC Voltage | 0.1mV to 1000V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000µF |
| Continuity | Yes |
| DC Current | 0.1 to 1000A |
| DC Current Basic Accuracy | ±2.8% |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±2.8% |
| Diode Test | Yes |
| Frequency | 0.001kHz to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature [IR] Basic Accuracy | -58 to 518°F (-50 to 270°C) |
| Temperature [IR] Max Resolution | ±2.0% of reading or ±4°F/±2°C |
| Temperature [Type K] Max Resolution | -4 to 1400°F (-20 to 760°C) |
| Temperature [Type N] | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 Years |
| Weight | 13.6oz (386g) |
Resources & Support
Datasheet
Extech EX850 Datasheet
Certification
Extech EX850 Declaration of Conformity
User Manual
Extech EX850 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
