Flir PoE Interface

Interface for Flir Traffic Sensors with Integrated Outputs

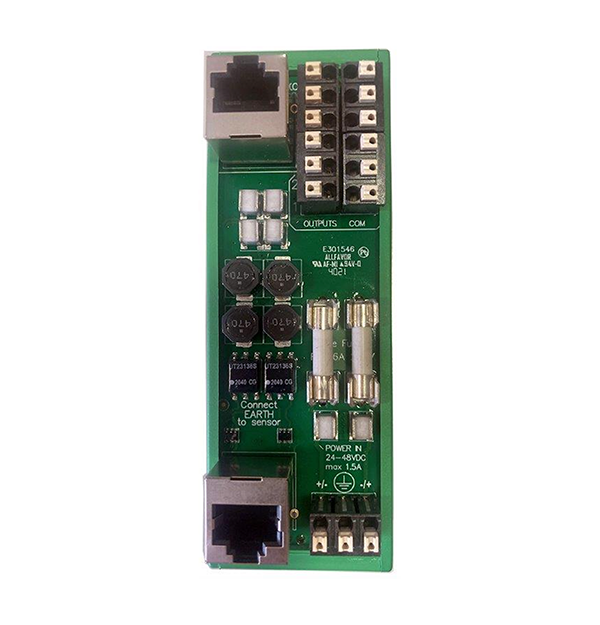

The Flir Power over Ethernet interface is designed to supply power and data connectivity to all Flir traffic sensors. This small, din-rail mountable interface has two integrated physical outputs which are directly addressable in the connected sensor.

Specifications

Measurement & Analysis
Relative Humidity 5% to 95%, 55°C (no condensation)
Communication & Data Storage
Output PoE via RJ45 connector or terminal block
Power
Input Voltage 24 – 48 VDC (non-polarized)
Environmental & Certifications
EMC FCC Title 47, Part15, Subpart B, Class B
EN55032:2015: Radiated & Conducted: Class B
EN61000-4-2:
Contact Discharge: +/- 4kV
Air Discharge: +/- 8kV
EN61000-4-3:
Radiated 10V/m Level 3
EN61000-4-4:
DC Power Port: +/- 1kV Level 2
Signal Port: +/- 1kV Level 3
EN61000-4-5:
DC Power Port: Line-To-Line: +/- 2.0kV Class 4
DC Power Port: Line-To-Earth: +/- 4.0kV Class 4
Signal Port: Line-To-Earth: +/- 4kV Class 4
EN61000-4-6: Conducted 10Vrms Level 3
Environmental NEMA TS2:2003 (Temp, Voltage, Shock, Vibration) / EN 50556:2011 (Cold, Dry Heat, Damp Heat, Vibration)
Operating Temperature -40°C to 74°C (-40°F to 165°F)
Relative Humidity 5% to 95%, 55°C (no condensation)
Safety EN62368-1
Storage Temperature -40°C to 85°C (-40°F to 185°F)
General
Dimensions (H x W x D) 126 mm × 41 mm × 50 mm (4.96 in × 1.61 in × 1.97 in)
Weight 90 g (3.17 oz)

Resources & Support

Datasheet

FLIR PoE Interface Datasheet

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
