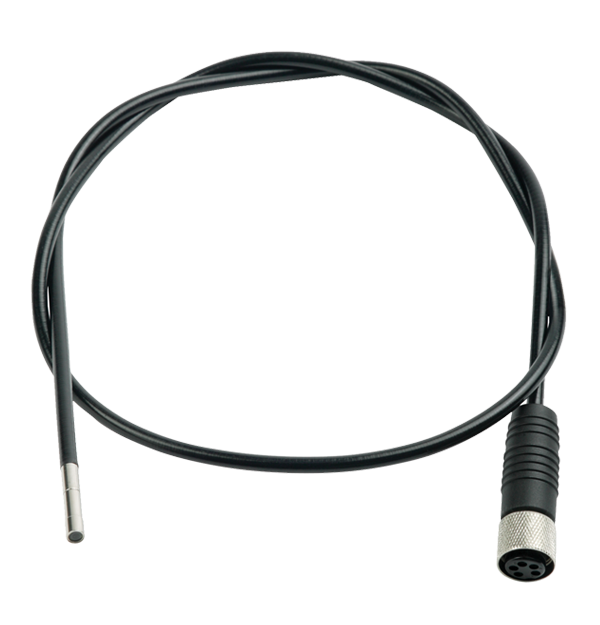

Extech HDV-4CAM-5FM
4mm VideoScope Camera Head
The Extech HDV-4CAM-5FM is an optional camera for use with the HDV600 Videoscope series. This 4 mm Camera Head with a Macro lens features a 56° field of view. It has a five meter semi-rigid cable length and a minimum focus distance at 15 mm (0.59 in).
Specifications
| General | |
|---|---|
| Camera Head | Stainless steel housing |
| Diameter | 4mm (0.157") |
| Field of view [FOV] | 56° |
| Focus Distance | 2 to 6cm (0.79 to 2.36") |
| LED[s] | 4 |
| Length | 5m (16') |
| Light Intensity | 1000 Lux at 15mm |
| Resolution | 320 × 240 pixels |
| Additional Details | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 year |
Resources & Support
Datasheet
Extech HDV-xTXx-HDV-xCAM Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
