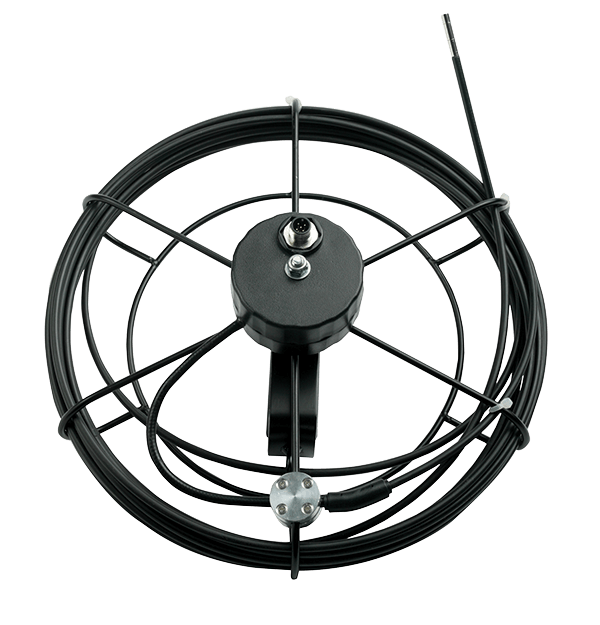

The Extech HDV-5CAM-30FM is an optional camera for use with the HDV600 videoscope series. This 5.5 mm camera head with macro lens features a 65° field of view (FOV). Thirty meter semi-rigid cable length. Minimum focus distance at 15 mm (0.59 in).
Specifications
| General | |
|---|---|
| Camera Head | Stainless steel housing |
| Diameter | 5.5mm (0.22") |
| Field of view [FOV] | 65° |
| Focus Distance | 2 to 6cm (0.79 to 2.36") |
| LED[s] | 4 |
| Length | 30m (98') |
| Light Intensity | 3500 Lux at 20mm |
| Resolution | 640 × 480 pixels |
| Additional Details | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 year |
Resources & Support
Datasheet
Extech HDV-xTXx-HDV-xCAM Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
