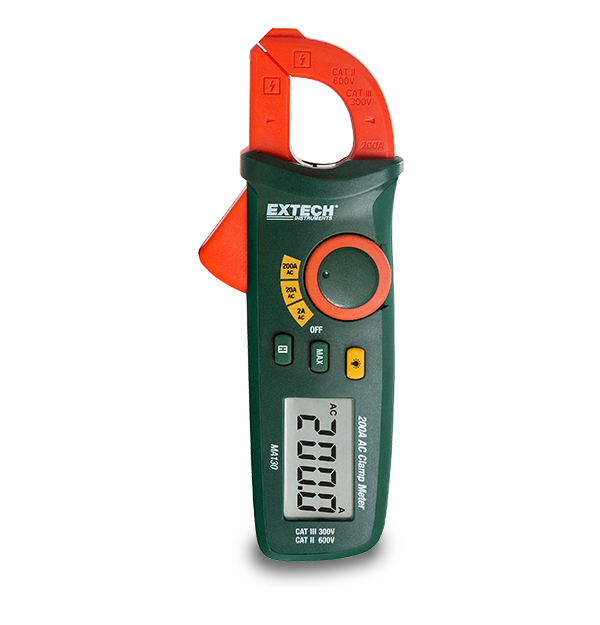

Extech MA130
Mini 200A AC Clamp Meter
The Extech MA130 Mini 200 A AC Clamp Meter has an easy to use, pocket-sized design with a backlit LCD display and a 16 mm (0.6 in) jaw size that fits conductors up to 300 MCM. It allows measurements in tight locations and has manual ranging current measurements with three ranges to choose from. Features data hold to freeze readings on display and max hold to record maximum current readings. Complete with two AAA batteries.
Specifications
| General | |
|---|---|
| AC Current | 2.000A, 20.00A, 200.0A |
| AC Current Basic Accuracy | ±(4% of reading + 30 digits) |
| AC Current Max Resolution | 1mA, 10mA, 100mA |
| Jaw Size | 0.6" (16mm), conductors up to 300MCM |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 6.2 × 2.4 × 1.3" (158 × 60 × 33.5mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V, CATII - 300V |
| Warranty | 2 years |
| Weight | 6oz (170g) |
Resources & Support
Datasheet
Extech MA130 Datasheet
Certification
Extech MA130 Declaration of Conformity
User Manual
Extech MA130 User Manual
