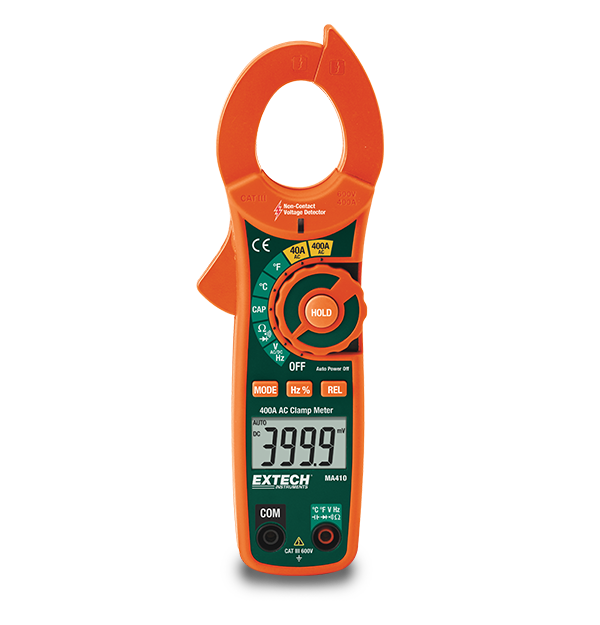

Extech MA410
400A AC Clamp Meter + NCV
The compact Extech MA410 400 A True RMS Clamp Meter offers plant maintenance techs, electrical contractors, HVAC troubleshooter, and DIYers a test instrument that delivers a high level of features at a great price. In addition to a host of core multimeter and current measurement capabilities, it also has a built in, non contact voltage (NCV) detector. The heart of the MA410 is a full function digital multimeter. The measurement functions cover most types of troubleshooting over and above noninvasive current probe measurements. This includes voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity tests. Even measure temperature with the supplied Type K bead wire temperature probe. Comes with test leads, general purpose Type K wire temperature probe, two AAA batteries, carrying case, user manual, and a one year limited warranty.
Specifications
| General | |
|---|---|
| AC Current | 40.00A, 400.0A |
| AC Current Basic Accuracy | ±(2.5% of reading + 8 digits) |
| AC Current Max Resolution | 0.01A |
| AC Voltage | 4.000V, 40.00V, 400.0V, 600V |
| AC Voltage Basic Accuracy | ±(1.8% of reading + 8 digits) |
| AC Voltage Max Resolution | 0.001V |
| Capacitance | 40.00nF, 400.0nF, 40.00µF, 100.0µF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Voltage | 400.0mV, 4.000V, 40.00V, 400.0V, 600V |
| DC Voltage Basic Accuracy | ±(0.8% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | 0.5 to 99.0% |
| Duty Cycle Basic Accuracy | ±(1.2% of reading + 2 digits) |
| Duty Cycle Max Resolution | 0.10% |
| Frequency | 10Hz to 10kHz |
| Frequency Basic Accuracy | ±(1.5% of reading + 2 digits) |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 1.2" (30mm), conductors up to 350MCM |
| Resistance | 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ, 40.00MΩ |
| Resistance Max Resolution | 0.1Ω |
| Temperature [Type K] Max Resolution | -4 to 1400 °F (-20 to 760 °C) |
| Temperature [Type N] | ±(3% of reading + 9°F/5°C) |
| Temperature [Type N] Basic Accuracy | 0.1°F/°C |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.9 × 2.6 × 1.5" (200 × 66 × 37mm) |
| Display | 4000-count segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 7.2oz (205g) |
