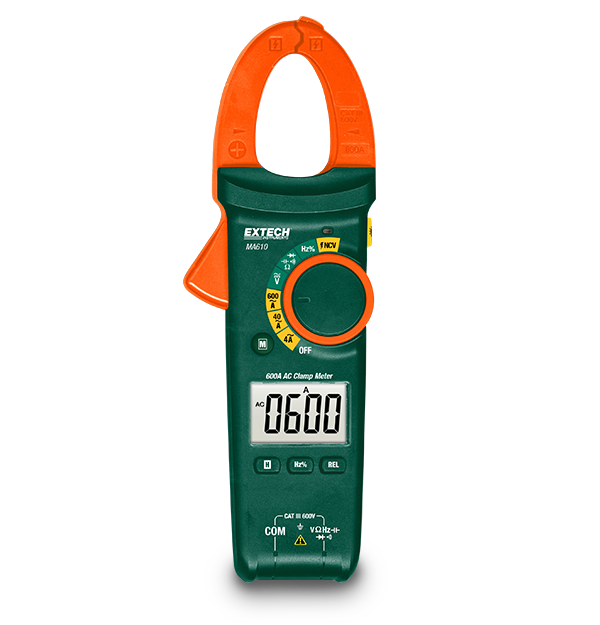

The Extech MA610 is a fully loaded clamp meter with multimeter functions including AC current, AC/DC voltage, resistance, frequency, and capacitance. It also has a built-in non-contact voltage (NCV) detector to quickly check circuits and wires for live voltages. The pocket-sized meter with 30 mm (1.2 in) jaw fits conductors up to 500 MCM and is designed with a large backlit LCD display to view in dimly lit area.
Specifications
| General | |
|---|---|
| AC Current | 600.0A |
| AC Current Basic Accuracy | ±2.0% |
| AC Current Max Resolution | 1mA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.8% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Frequency | 1MHz |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 1.2" (30mm), conductors up to 500MCM |
| Non_Contact Voltage [NCV] Detector | 100 to 600VAC |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 9 × 3 × 1.6" (228 × 77 × 41mm) |
| Power | 3 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 9.3oz (265g) |
