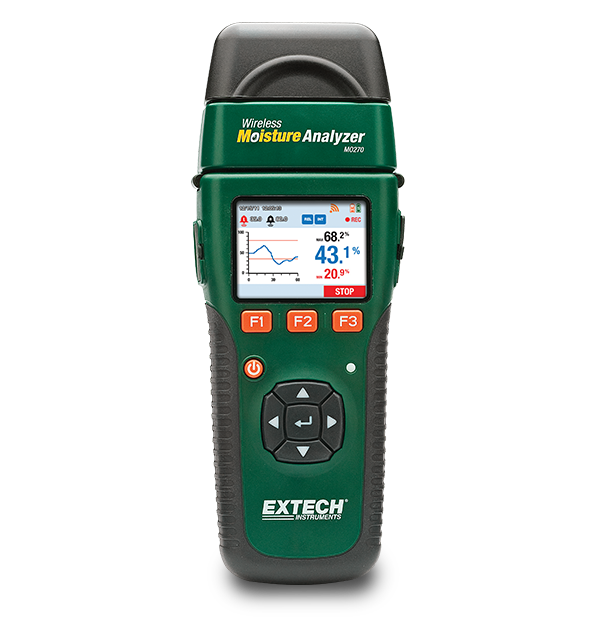

Extech MO270
Wireless Pin/Pinless Moisture Meter
The Extech MO270 is a Wireless Pin/Pinless Moisture Meter with detachable pin/pinless sensors that transmit data to the display, and can be viewed up to 20 m (65 ft) from the measurement point. Measurements are viewed on a full color graphical display. Readings from 8 remote sensors can be viewed on the display. The receiver can record data from 40 remote sensors simultaneously. Trending Mode displays a graphical representation of live readings for fast scanning of large areas. An included telescoping handle extends to 1.2 m (4 ft) for measurements in ceilings or in hard to reach areas (optional 3 m (9.8 ft) and 5 m (16.4 ft) handles available). Complete with 9 V battery, remote pin probe, replacement pins, protective cap, and pouch case.
Specifications
| General | |
|---|---|
| Relative Moisture Content (Pinless) | 0 to 99.9 (relative) |
| Relative Moisture Content Max Resolution (Pinless) | 0.1 |
| Sensor Type | Replaceable threaded contact pins (0.75"/22mm), non-penetrating electromagnetic sensor pad |
| Wireless Transmission Frequency | 2.4GHz (pin/pinless sensor to display) |
| Wireless Transmission Range | 65ft (20m) unobstructed view |
| WME Moisture Content (Pin) | 6.0 to 99.9% |
| WME Moisture Content Basic Accuracy (Pin) | ±(5% of reading + 5 digits) |
| WME Moisture Content Max Resolution (Pin) | 0.10% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8 × 2.3 × 1.7" (203 × 58.4 × 43.2mm) |
| Power | 3.7V rechargeable Li-Polymer battery |
| Warranty | 2 years |
| Weight | 7.2oz (204g) |
