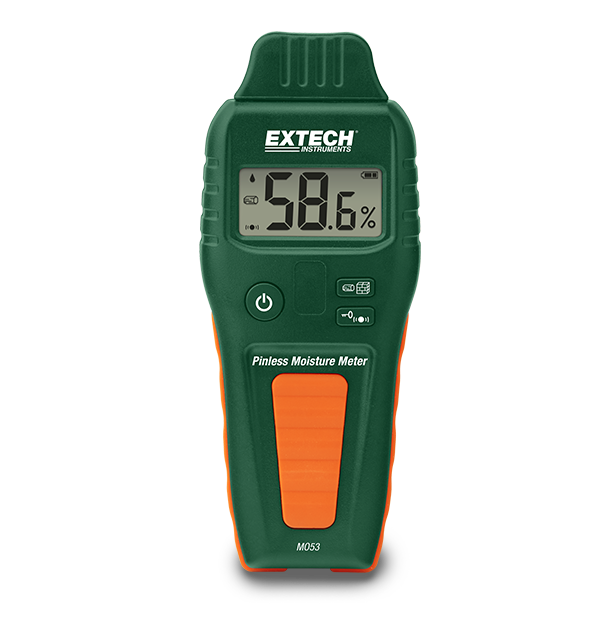

Extech MO53
Pinless Moisture Meter
Use Extech’s MO53 Pinless Moisture Meter for non-invasive measurements on wood and other building materials with virtually no surface damage. The depth of measurement is approx 20 mm (< 0.75 in). It is easy to operate with display icons that indicate the levels of moisture content plus an audible alert feature. The MO53 is ideal for building restoration projects and applications where moisture detection on floors, tiles, and under carpets is critical. A must-have tool for analyzing the after effects of water leakage behind walls and in ceilings.
Specifications
| General | |
|---|---|
| Measurement Depth | <0.75" (20mm) |
| Sensor Type | Non-penetrating electromagnetic sensor pad |
| WME Moisture Content (Pinless) | Wood: 0 to 99.9%; Other building materials: 0 to 56.5% |
| WME Moisture Content Max Resolution (Pinless) | 0.10% |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.7 × 2.6 × 1.2" (170 × 65 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 4.2oz (120g) battery not included Range |
