FLIR RS6800
High Speed MWIR Infrared Camera

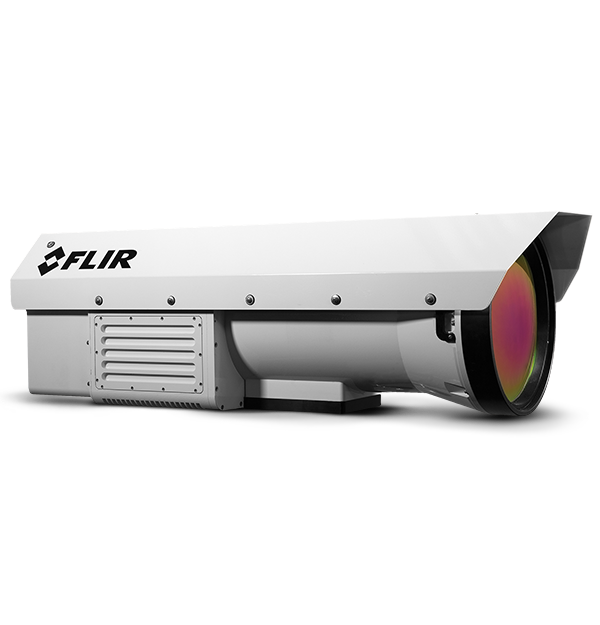

The RS6800 is a multi-application long range infrared camera system designed for range tracking, target signature, research, and science applications. The RS6800 camera is a rugged, high performance, full-featured radiometric instrument that can survive harsh range environments
Rugged, High-performance Science Camera
The 640 x 512 detector captures stunning images that can highlight temperature differences as small as <20 mK (18 mK typical).
Four active preset operating modes provide adjustable integration times, embedded non-uniformity correction, bad pixel replacement, and window size adjustments.
Continuous zoom from 120 - 1200 mm, with IRIG synchronized, TSPI-accurate timestamping of lens focal length and focus position data.
Specifications
| Highlighted | |
|---|---|
| Detector Resolution | |
| Resolution | 640 x 512 |
| Detector Pitch | 25 µm |
| Spectral Range | 3.0 – 5.0 µm |
| Detector Type | Indium Antimonide (InSb) |
| Camera f-number | f/5.0 |
| Dynamic Range | 14-bit |
| NETD | <20 mK |
| Frame Rate [Full Window] | 565 Hz |
| Integration Time | 480 ns to 687 sec |
| Focus | Motorized with autofocus and active athermalization |
| Imaging & Optical | |
|---|---|
| Analog Overlay | Customizable (IRIG-B, Date, Integration Time, Internal Temp, Frame Rate, Sync Mode, Cooler Hours) |
| Analog Palettes | Selectable 8-bit |
| Available Lenses | 120-1200 mm (10x) Continuous Metric Zoom, 7.6° HFOV @ 120 mm, 0.76° HFVO @ 1200 mm |
| Camera f-number | f/5.0 |
| Close-up Lenses/Microscopes | NA |
| Detector Pitch | 25 µm |
| Detector Resolution | |
| Detector Type | Indium Antimonide (InSb) |
| Digital Data Protocol | Simultaneous Gigabit Ethernet and CameraLink Full over Fiber (or CoaXpress) |
| Dynamic Range | 14-bit |
| Focus | Motorized with autofocus and active athermalization |
| Frame Rate [Full Window] | 565 Hz |
| HD Video | (720p, 50/59/60 Hz, SMPTE 296 M) (1080p, 25/29/30 Hz, SMPTE 274 M) |
| Integration Time | 480 ns to 687 sec |
| NETD | <20 mK |
| Operability | >99.5% (99.9% typical) |
| Readout | Snapshot |
| Readout Modes | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| Resolution | 640 x 512 |
| Sensor Cooling | Closed Cycle Rotary |
| Spectral Range | 3.0 – 5.0 µm |
| Subwindow Modes | User-Defined |
| Well Capacity | 11.0M electrons |
| Zoom | 1-4x , Digital Zoom, Panning |
| Measurement & Analysis | |
|---|---|
| Accuracy | NA |
| Automatic Gain Control | Manual, Linear, Plateau Equalization, ROI, DDE |
| Communication & Data Storage | |
|---|---|
| Analog Video | NA |
| Synchronization Modes | Genlock; IRIG-B; Sync In, Sync Out, Trigger In |
| General | |
|---|---|
| Size [L x W x H] Sunshield - On | ( 927 x 315 x 290 mm ) (36.5 x 12.4 x 11.4 in) ) |
| Weight | 34.926 kg (77 lb) |
| Power | |
|---|---|
| Power | 24 VDC |
| Environmental & Certifications | |
|---|---|
| Altitude | 0 to 40,000 Feet Operational; 0 to 70,000 Feet Non-Operational |
| Detection Zones | 40 g, 11 msec 1/4 sine pulse / 4.3 g RMS random vibration, all 3 axes |
| Mounting | 9 × 1/4"-20 |
| Operating Temperature Range | -40°C to 50°C (-40°F to 122°F ) |
| Storage Temperature Range | -55°C to 80°C (-67°F to 176°F ) |
