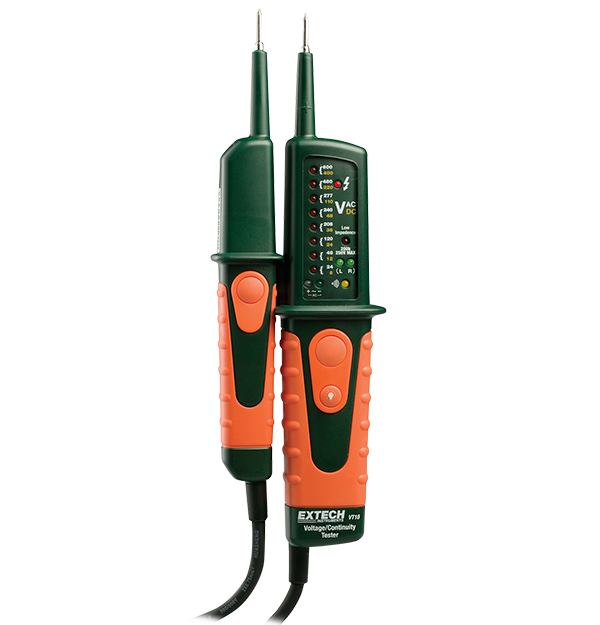

Extech VT10
Multifunction Voltage Tester
The Extech VT10 Multifunction Voltage Tester has LED AC voltage indications for 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V and 600 V, as well as LED DC voltage indications for 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V and 400 V. This tester has polarity detection with the LEDs for a positive and negative DC indication. Capable of running a continuity test with an audible tone. Phase rotation test for the motors, two handed operation tester for low impedance testing. Also, this tester has a built-in flashlight for testing in low lit or tight areas. The voltage function operates with out any batteries and it has a rubberized, double-molded IP64 housing.
Specifications
| General | |
|---|---|
| AC Voltage | 24, 48, 120, 208, 240, 277, 480, 600V AC |
| AC Voltage Basic Accuracy | -30% to 0% of the indication |
| Built_In Flashlight | Yes |
| Continuity | 0 to 400kΩ, guaranteed on < 50kΩ |
| DC Voltage | 6, 12, 24, 36, 48, 110, 220, 400V DC |
| DC Voltage Basic Accuracy | -30% to 0% of the indication |
| Frequency Bandwidth | 50/60Hz |
| Input Impedance | 1MΩ (approx) |
| Low Impedance | 12-250V AC/DC; impedance <6kΩ |
| Max Current | ≤1.2mA (600VAC); ≤1.0mA (400VDC) |
| Voltage Detection [Contact] | 100 to 600V AC (via single lead) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.4 × 3 × 1.6" (240 × 78 × 40mm) |
| IP Rating | IP64 |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 9.2oz (260g) |
