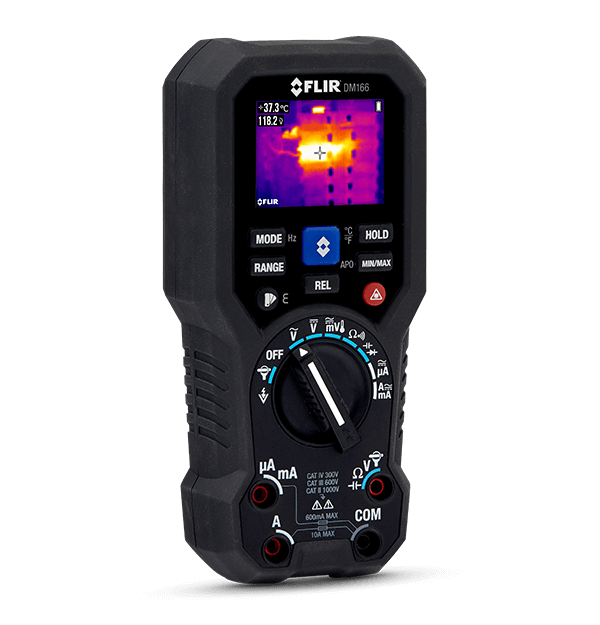

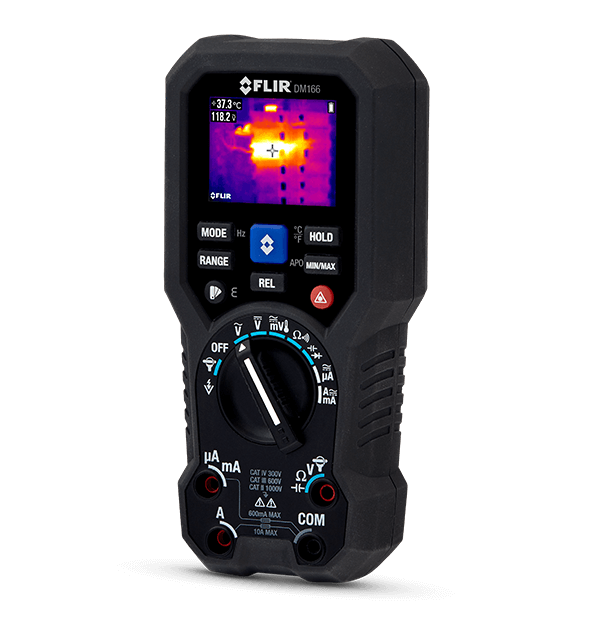

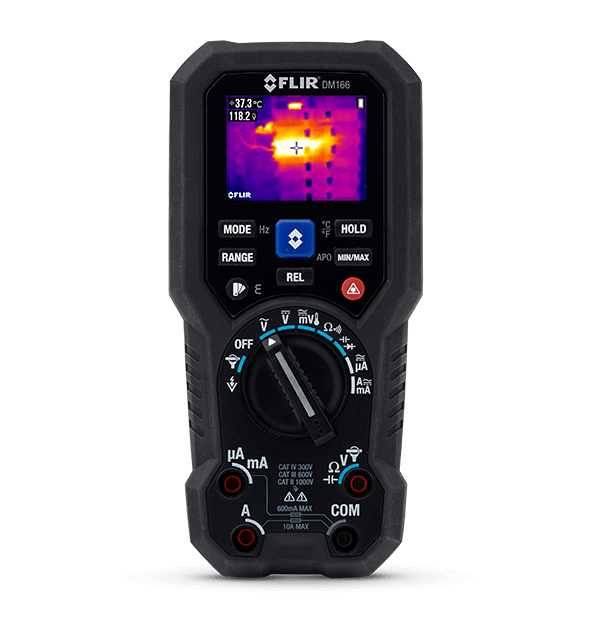

FLIR DM166
Imaging TRMS Multimeter
The FLIR DM166 is the most affordable multimeter with built-in thermal imaging — a must-have tool for commercial electricians, automation, electronics, and HVAC technicians. Featuring Infrared Guided Measurement (IGM™) powered by an 80 x 60 FLIR thermal imager, the DM166 visually guides you to the precise location of temperature anomalies and potential problems faster, more safely, and efficiently. The feature-packed multimeter is an ideal tool for troubleshooting and diagnosing complex issues in both high- and low-voltage applications.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 60 × 80 pixels (4,800 pixels) |
| AC_DC Voltage | Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5% |
| AC_DC Amps | Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7% |
| Imaging & Optical | |
|---|---|
| Focus | Fixed |
| IR Resolution | 60 × 80 pixels (4,800 pixels) |
| Thermal image palettes | Rainbow, iron, gray scale |
| Measurement & Analysis | |
|---|---|
| AC_DC Amps | Range: 10.00 A Basic Accuracy: ±1.0% / ±0.7% |
| AC_DC mAmps | Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7% |
| AC_DC microAmps | Range: 4000 µA Basic Accuracy: ±1.5% |
| AC_DC mVolt | Range: 600.0 mV Basic Accuracy: ±1% / ±0.5% |
| AC_DC Voltage | Range: 600.0 V Basic Accuracy: ±0.7% / ±0.5% |
| Capacitance | Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 2.000 mF ±2.0% 10.00 mF ±5.0% |
| Continuity check | Between 30 Ω and 480 Ω |
| Diode Test | Range: 3.000 V Basic Accuracy: ±0.9% |
| Frequency Range | Range: 99.99 kHz Basic Accuracy: ±1.0% |
| Resistance | Range: Basic Accuracy: 600.0 Ω ±0.3% 600.0 kΩ ±0.5% 6.000 MΩ ±0.9% 60.00 MΩ ±1.5% |
| Temperature Range | –10 to 150°C (14 to 302°F) |
| Thermocouple | –40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C) |
| True RMS | Yes |
| VFD AC Voltage | Range: 600.0 V RMS Basic Accuracy: ±1.0% |
| Power | |
|---|---|
| Auto Power Off | Yes |

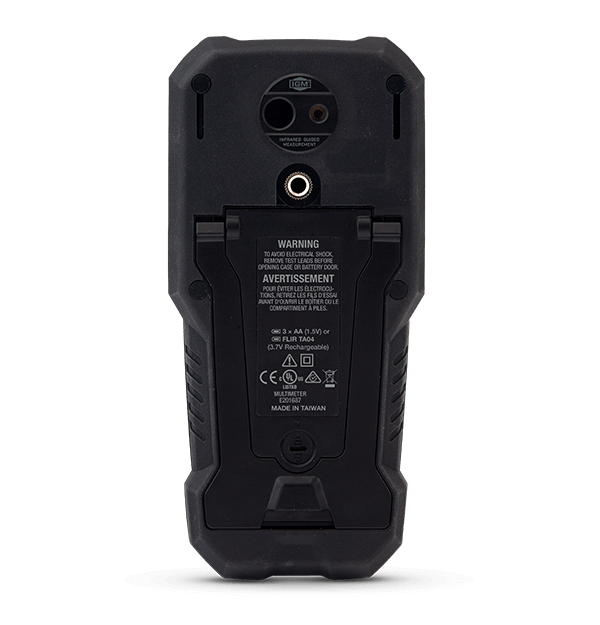

| Battery | 3 AA batteries; optional TA04 Li-Poly rechargeable battery |
| Environmental & Certifications | |
|---|---|
| Drop test | 3 m |
| IP Rating | IP40 |
| Warranty | 10 yrs on product and detector |
