Flir DM266
Compact Thermal Imaging Multimeter with Meterlink®

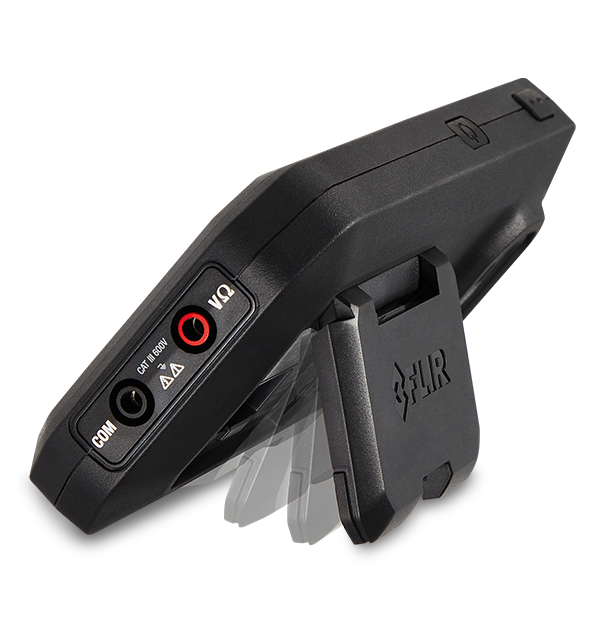

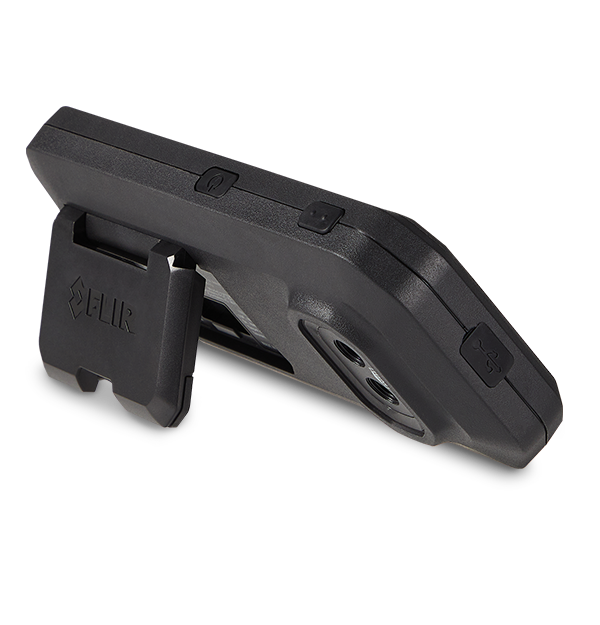

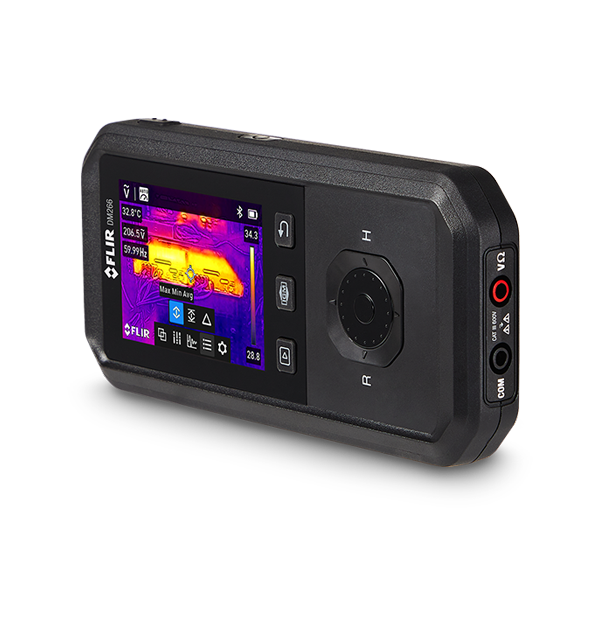

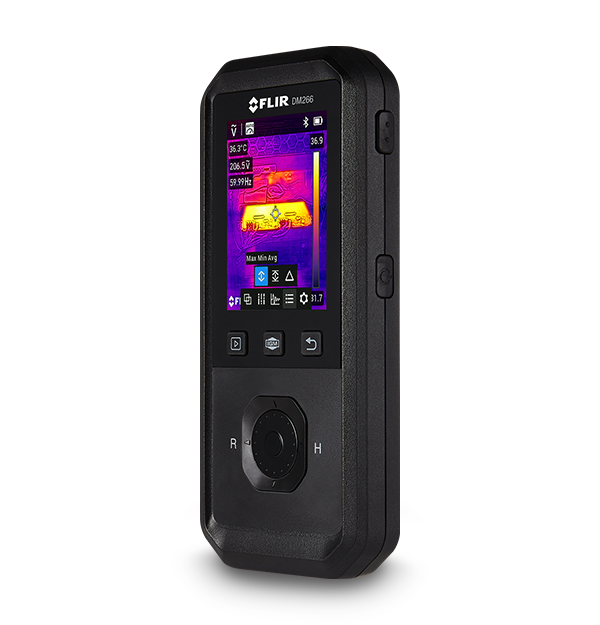

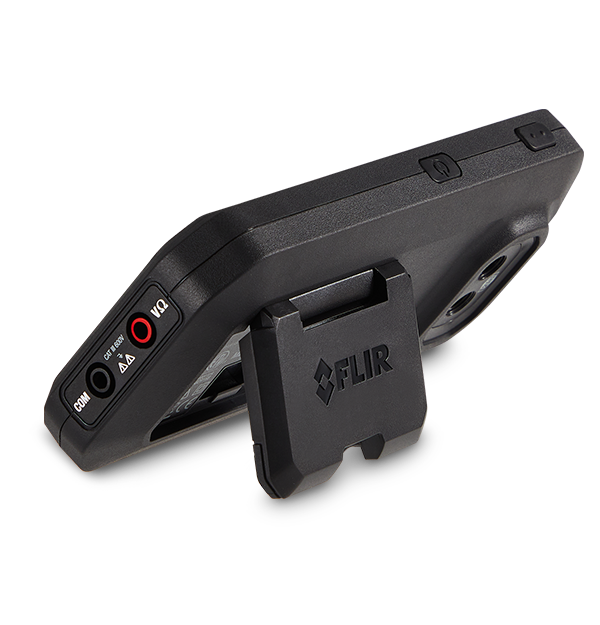

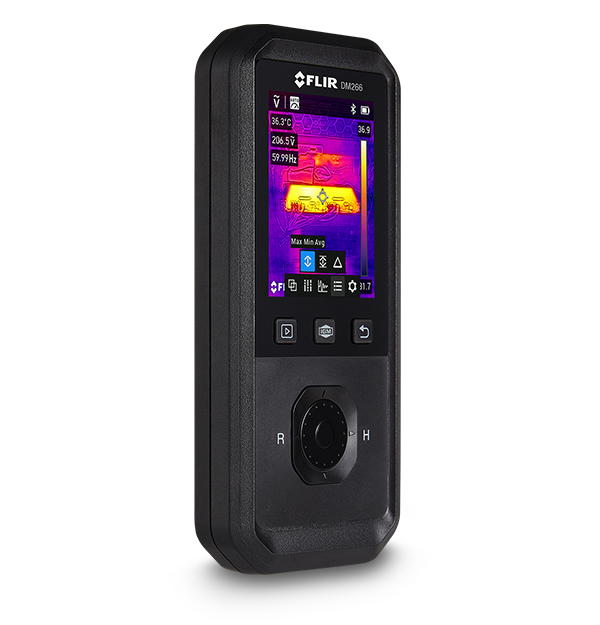

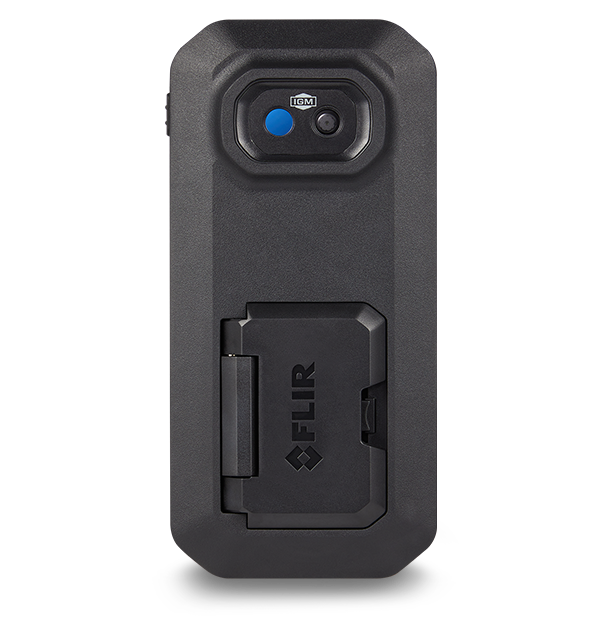

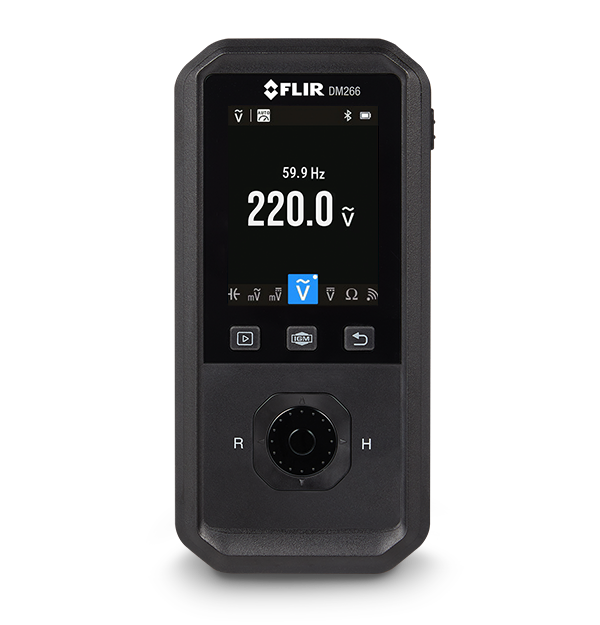

The Flir DM266 is a compact and intuitive True RMS multimeter with IGM™ (Infrared Guided Measurement) to quickly and safely pinpoint electrical issues. Its MSX® (Multi-Spectral Dynamic Imaging) enhancement blends visible details with thermal images for clearer, faster diagnostics. Designed for portability, it supports safe charge-and-use capability for continuous operation. A remote control attached to the test leads lets you capture measurements and inspection scenes simultaneously - ideal for tight spaces and one-handed operation. Built-in tilt stand with a magnetic mount enables hands-free work. Super Resolution boosts thermal images from160 × 120 to 320 × 240 for superior details. With the Meterlink® app, you can capture readings, review images and videos, and generate reports directly from your mobile device.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 (Native Resolution) 320 × 240 (Super Resolution) |
| Display Size | 3.2 in. IPS LCD |
| Display Counts | 6000 |
| Connectivity | Bluetooth BLE |
| Safety Category | IEC 61010-1 CAT III-600 V |
| Imaging & Optical | |
|---|---|
| Display Size | 3.2 in. IPS LCD |
| Focus | Fixed |
| FOV (w x h) | 57° × 44° |
| Image Modes | Thermal MSX® (Multi-Spectral Dynamic Imaging), Thermal Camera Only, Digital Camera Only |
| IR Resolution | 160 × 120 (Native Resolution) 320 × 240 (Super Resolution) |
| Sensitivity | 130 mK |
| Spectral Response | 8 µm to 14 µm |
| Thermal image palettes | Iron, Rainbow, Arctic, White Hot, and Black Hot |
| Thermal Imaging Detector | Flir Lepton® microbolometer |
| Visual Resolution | 2 MP (1600 × 1200 pixels) |
| Measurement & Analysis | |
|---|---|
| Capacitance | Range: 10 mF / 1000 nF, 10.00 µF, 100.0 µF, 1000µF, ±(2.0% + 2 Digits) 10.00 mF, ±(3.0% + 5 Digits) |
| Category Rating | CAT III-600 V |
| Continuity check | <30 Ω Beeper On, >150 Ω Beeper Off |
| Diode Test | Range: 3 V / Accuracy ±(0.9% + 3 Digits) |
| Display Counts | 6000 |
| Frequency | 9 Hz |
| Frequency Counter | Range: 1 kHZ / Accuracy ±(0.1% + 2 Digits) |
| Measuring Rate | 3 Samples Per Second |
| Resistance | Range: 60 Mohm / 600.0 Ω, 6.000 KΩ, 60.00 KΩ, 600.00 KΩ, 60.00 MΩ, 6.000 MΩ,± (1.0% + 2 digits) 60.00 MΩ, ± (1.0% + 5 Digits) |
| Temperature Accuracy | ±3°C (5.4°F) or ±3% of the Reading; Whichever is Greater |
| Temperature Range | 10°C to 300°C (14°F to 572°F) |
| True RMS | Yes |
| VFD AC Voltage | Range: 600 V AC / Accuracy ±(1.0% + 3 digits) at 45 Hz to 65 Hz |
| Communication & Data Storage | |
|---|---|
| Bluetooth range max | 10 m (32 ft) |
| Communication Protocol | Meterlink |
| Connectivity | Bluetooth BLE |
| Data Recording | 1 to 100 Seconds (Interval Configurable) |
| Data Storage | Up to 40,000 images |
| Image File Format | JPEG |
| Memory | 40,000 Readings Per Set |
| Power | |
|---|---|
| AC/DC Volts | Range: 600 V / Accuracy 600.0 mV, 6.000 V, 60.00 V ±(0.3% + 2 Digits) 600.0 V ±(0.5% + 5 Digits) |
| Auto Power Off | For Device: Options: Off, 2, 5, or 10 Minutes For Worklight Only: Options: Off, 5, 15, or 30 Minutes |
| Battery | Rechargeable 3.7 V, 2950 mAh LiPo |
| Battery life | Up to 12 Hours in IGM Mode With Display Brightness Set to Medium Brightness Up to 16 Hours in Multimeter Mode Set to Medium |
| General | |
|---|---|

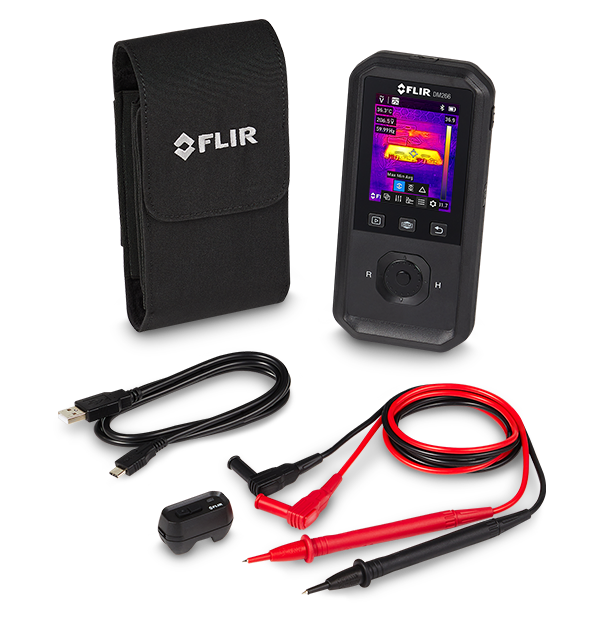

| Box Contents | 1 × DM266 IGM Compact Multimeter 1 Set of CAT IV-600 V Test Leads 1 × USB Type-A to C Cable 1 × Soft Carrying Case 1 × Quick Start Guide 1 × TA93 Remote control 1 × CR1220 Coin Battery |
| Size (L x W x H) | 168 × 87 × 31 mm (6.5 × 3.4 × 1.2 in) |
| Weight | 299 g (10.54 oz.) |
| Environmental & Certifications | |
|---|---|
| Certifications | ETL, CE, FCC |
| Drop test | 2 m (6.6 ft) |
| EMC | EN61326-2-2, EN300328 |
| Emissivity Settings | 0.10 to 1.00 (Default is 0.95); Select From Three Presets or Set Manually |
| IP Rating | IP40 |
| Safety Category | IEC 61010-1 CAT III-600 V |
| Warranty | Limited 3-Year Warranty |
