Axx IP69k Housing (T912302)

Washdown/food grade enclosure for Flir A40/A50/A70 models

3 399,00 € ex. VAT

4 078,80 € inc. approx. VAT (20 %)
BUY NOW

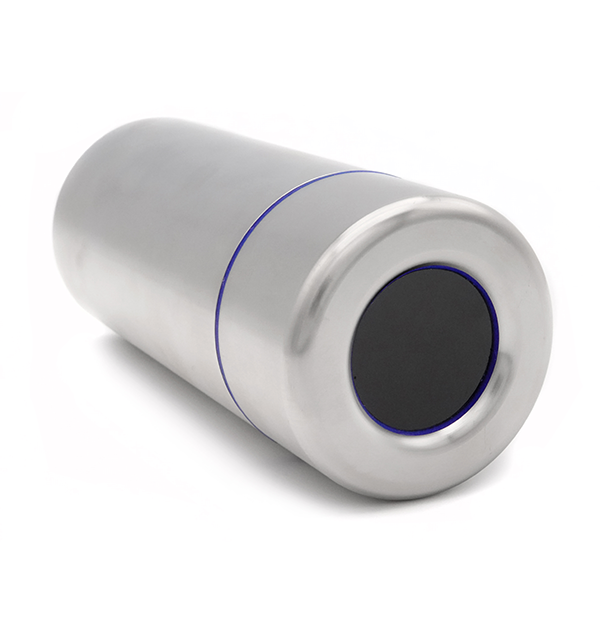

This stainless steel, IP69k-rated protective housing is specifically designed for Flir A40/A50/A70 (Axx) thermal cameras. The housing is designed in accordance with EHEDG standards. The enclosure is made of A316L electropolished to Ra <0.8 µm and all seals are made of FDA certified material. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas.

Note: the germanium window blocks the visual camera. The germanium employed is a crystalline material and not certified for use in proximity to food stuff. For use in food processes it is recommended to perform an application specific risk analysis according to local regulations and guidelines.

Built for the environments that need thermal most

The same Axx- or Axxx-Series camera can be deployed with confidence in a range of conditions that would typically be too harsh to consider.

Food & beverage

Stainless steel that shrugs off high-pressure, high-temperature washdown—with EHEDG-compliant hygienic mounts to complete the install.

IP69K   ·   EHEDG design   ·   FDA-certified seals   ·   316L

Metals & heavy industry

The IP67 housing with stacked cooling keeps cameras on station near furnaces, kilns, and hot processes.

Condition monitoring

Sealed protection plus sunshields make permanent outdoor monitoring points practical, in any season.

Early fire detection

Dust-laden waste, recycling, and storage sites get continuous detection without sacrificing the camera.

Protecting the camera protects the program—uptime, data continuity, and the budget that bought them.

Accessories

  1. Air Knife for Axx IP67 Housing [T912380]
  2. Sunshield for Axx Series Housings (T912378)
  3. IP67 Housing for Axx Series (T912301)
  4. IP67 Housing for Axx Series (T912493)
  5. Cooling Jacket for Axx Series Housing (T912374)
  6. Cooling Block for Axx Series Housing (T912376)

Resources & Support

Datasheet

FLIR Axx IP67/IP69k Housing Datasheet

Download

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
