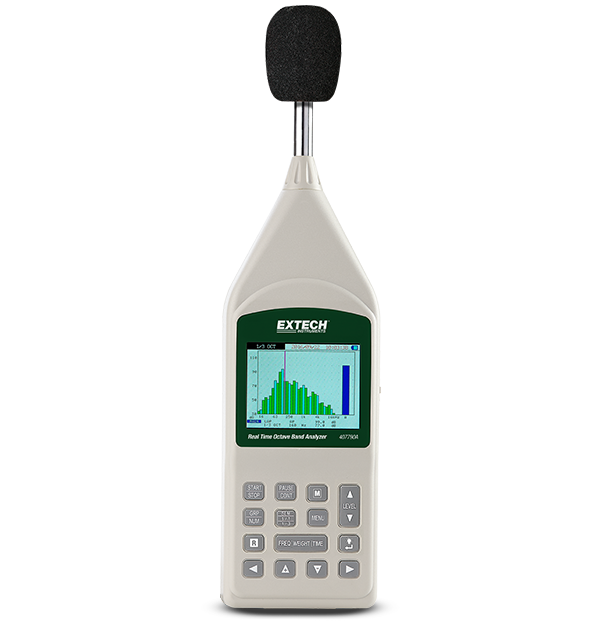

Extech 407790A
Real Time Octave Band Analyzer
El medidor ’de nivel de sonido integrador tipo 2 de Extech con Octave y 1/3 de banda de Octave en tiempo real se muestra en una gran pantalla LCD retroiluminada en color TFT de 3,5" 320 x 240.
Especificaciones
| Especificaciones generales | |
|---|---|
| Amplitud de la banda de frecuencia | 25Hz ~ 10kHz |
| Memoria | microSD card (included) |
| Micrófono | Condenser, 0.52" (13.2mm) |
| Ponderación | A, C, and Z |
| Rango de sonido (dB) | 20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB |
| Rango de sonido (dB), precisión básica | ±1.5dB (ref 94dB @ 1kHz) |
| Salida analógica | AC output: 1 Vrms (at full scale); DC output: 3.0V, 25mV/dB |
| Tiempo de respuesta | Fast, Slow, 10ms (t), I |
| Detalles adicionales | |
|---|---|
| Alimentación | 4 × C (1.5V) batteries / external supply 6V DC, 1A |
| Certificaciones | 407790A-NIST_S: CE, NIST 407790A_S: CE |
| Dimensiones | 13.6 × 3.9 × 2.4" (345 × 100 × 60mm) |
| Garantía | 2 years |
| Peso | 33.5oz (950g) |
Recursos y asistencia
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407790A Software
User Manual
Extech 407790A User Manual
Certification
Extech 407790A Declaration of Conformity
Datasheet
Extech 407790A Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
