Discontinued

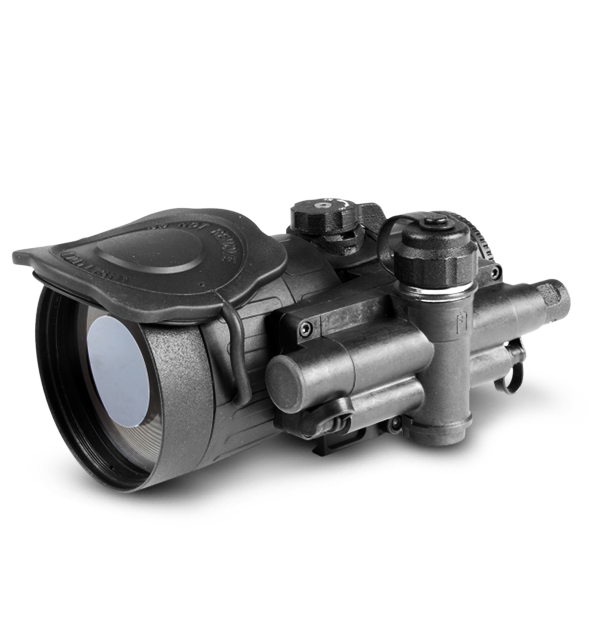

FLIR CO-X
80 mm Night Vision Clip-On System
The FLIR CO-X clip-on system introduces night vision capability to traditional daytime optics. Intended for mid-range shooting, the CO-X mounts in front of a day scope and provides reliable night vision in minimal light conditions. Using the existing daytime reticle for shot placement eliminates the need to rezero, while quick-release Picatinny mount installs in seconds.
Mid-Range Detection, High-Grade Night Vision
No rezeroing and quick transitions between day and night optics ensure 24/7 mission capability.
Included XLR IR illuminator and manual gain control enhance Gen 2+/Gen 3 high-quality night vision.
Objective lens adapter mounts to scopes and binoculars while one AA or CR123A battery provides up to 60 hours of power.
Especificaciones
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | - |
| Alivio ocular (mm) | - |
| Aumento | 1x |
| Campo de visión | 12° |
| Control de brillo automático | Yes |
| Corte_de luz brillante | Yes |
| Diámetro de pupila de salida (mm) | 21 mm |
| Generación de IIT | Gen 2+ ID (Improved Definition) MG |
| Iluminador de infrarrojos | Detachable Long Range IR |
| Rango de enfoque | 10 m to Infinity |
| Resolución | 47-54 lp/mm |
| Sistema de lente | F/1.44; 80 mm |
| Tipo de fotocátodo | Multi-Alkali |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +50°С (-58°F to +122°F) |
| Temperatura operativa | -40°C to +50°С (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | Yes |
| Duración de la batería | 60 hrs (3V) / 30 hrs (1.5V) |
| Fuente de alimentación | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de baja carga de la pila | Yes (LED indicator) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | Wireless |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | Yes |
| Indicador de IR | No |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (largo × ancho × alto) | 150 × 100 × 83 mm (5.9 × 3.9 × 3.2 in) |
| Montaje en trípode | - |
| Peso del producto | 0.765 kg (1.7 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery, Light Suppressor for Day Scope, AWReC (Advanced Wireless Remote Control) #94, Quick Release Mount, Instruction Manual with Warranty Card, Soft carrying Case, Picatinny adapter for AWReC (Advanced Wireless Remote Control, Special Wrench, Packing Box, Light-Suppressor 3, Light-Suppressor 2, Light-Suppressor 1, Lens Tissue |
| Accesorios opcionales | Scope Mounting System 1 #40, Scope Mounting System 2 #41, Scope Mounting System 3 #42, Scope Mounting System 4 #43, Scope Mounting System 6 #44, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mount for IR illuminator #60, Mil-Standard Hard Shipping/Storage Case #102 |
Accesorios
Recursos y asistencia
Datasheet
CO-X Datasheet
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
