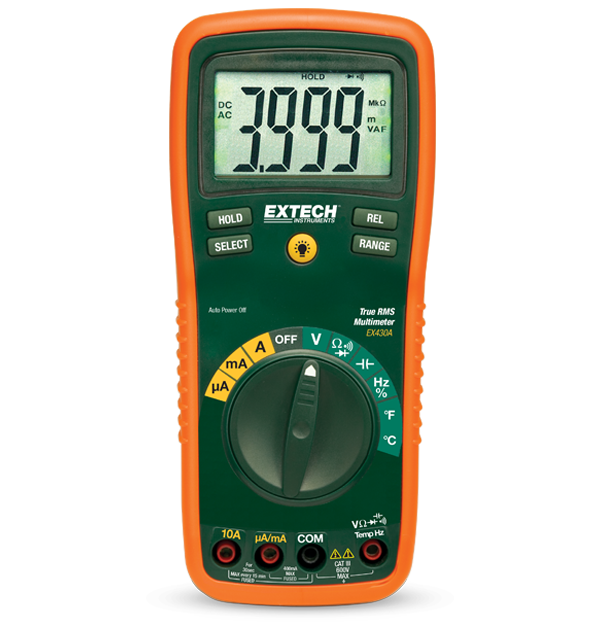

The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Especificaciones
| Especificaciones generales | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 0.1mA to 10A |
| Corriente CC | 0.1µA to 10A |
| Precisión básica de corriente CA | ±0.5% |
| Precisión básica de corriente CD | ±0.5% |
| Precisión básica de voltaje CA | ±0.3% |
| Precisión básica de voltaje CD | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 20MΩ |
| RMS real | Yes |
| Temperatura (tipo K), resolución máx. | -4 to 1382°F (-20 to 750°C) |
| Voltaje CA | 1mV to 600V |
| Voltaje CC | 0.1mV to 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantía | 2 years |
| Peso | 0.75lbs (342g) |
Recursos y asistencia
User Manual
Manual de usuario del Extech EX430A
Certification
Extech EX430A Declaration of Conformity
User Manual
Extech EX430A User Manual
Datasheet
Extech EX4xxA Datasheet
