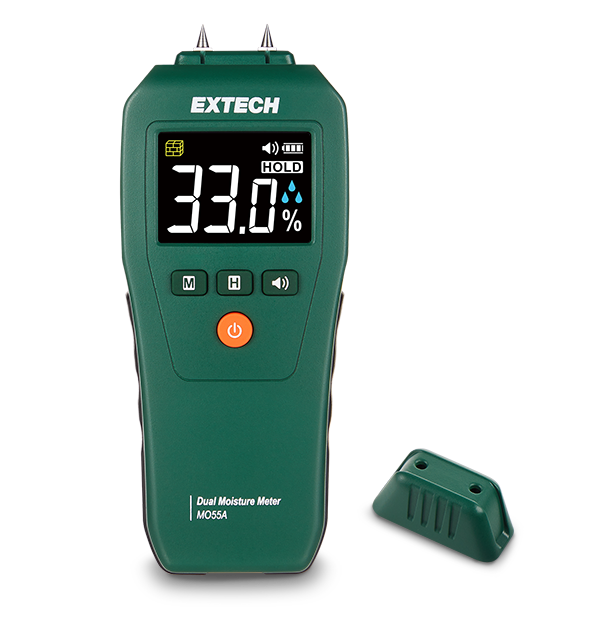

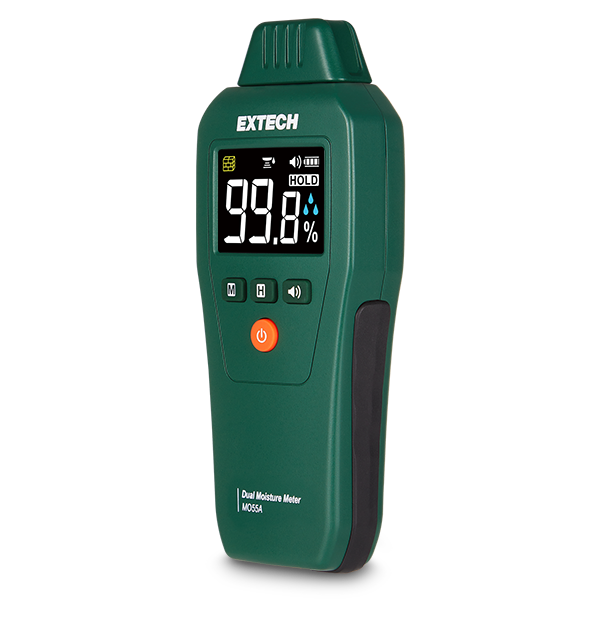

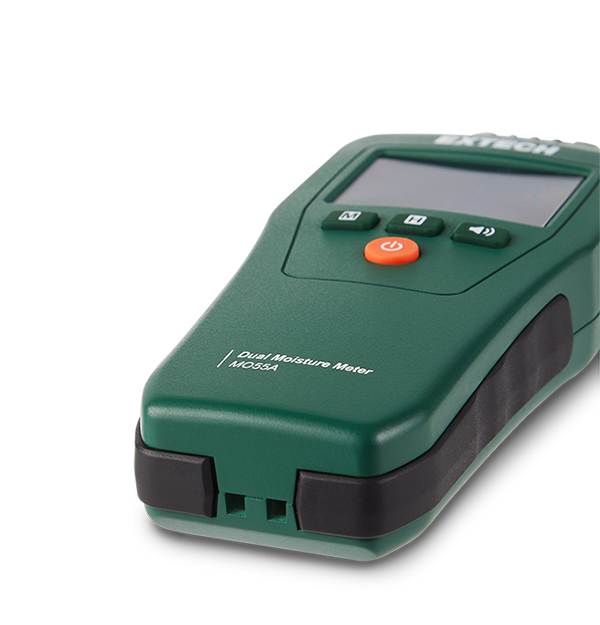

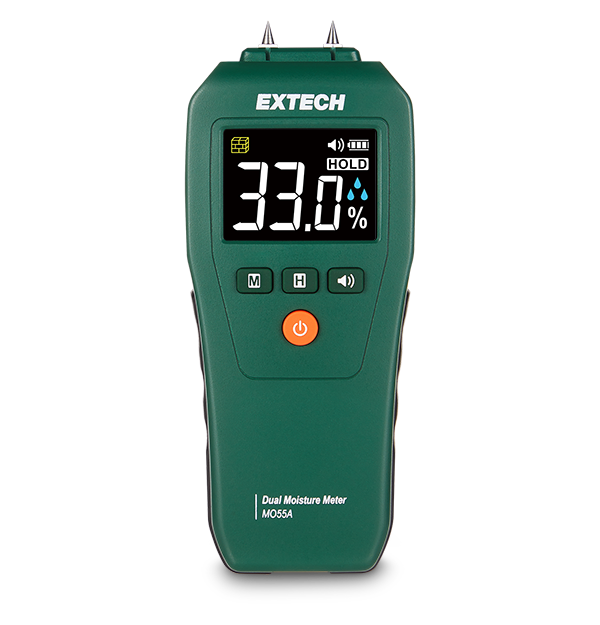

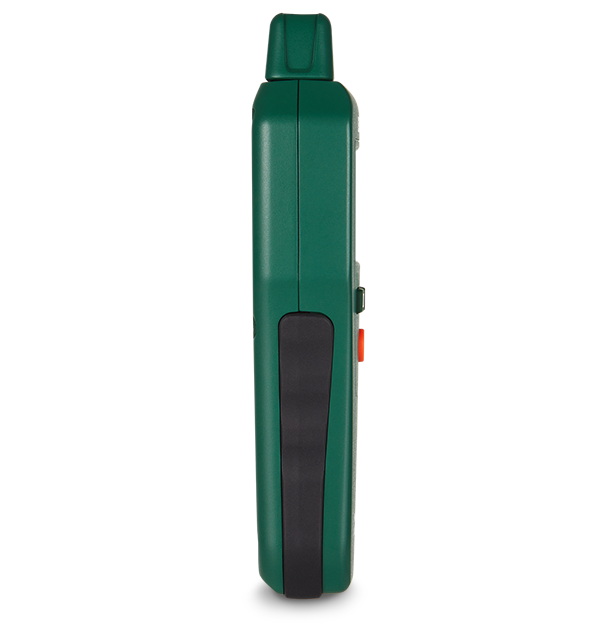

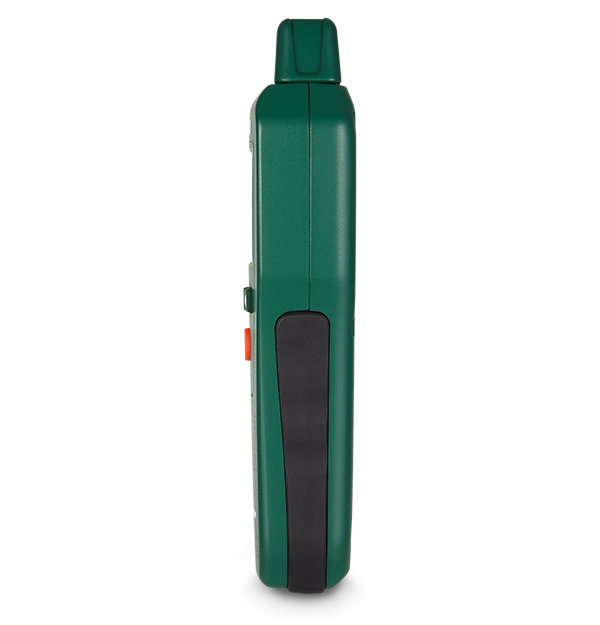

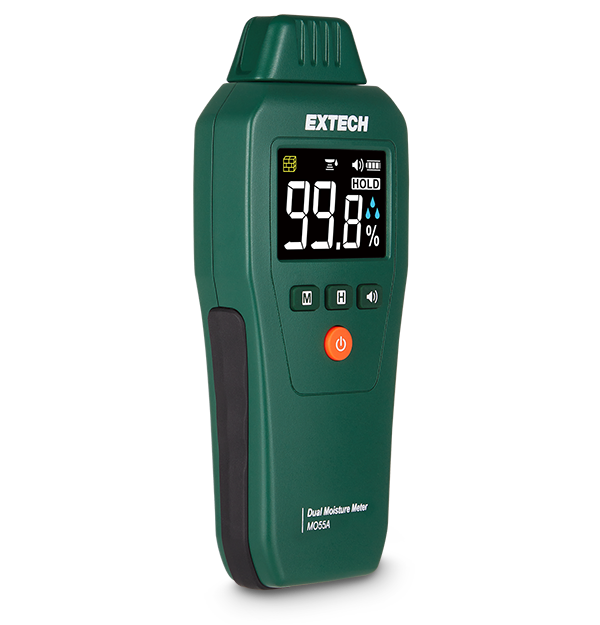

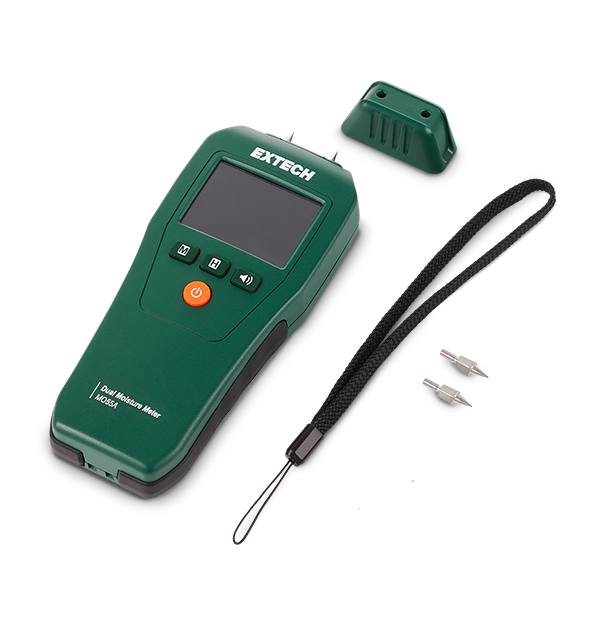

Extech MO55A
Combination Pin/Pinless Moisture Meter

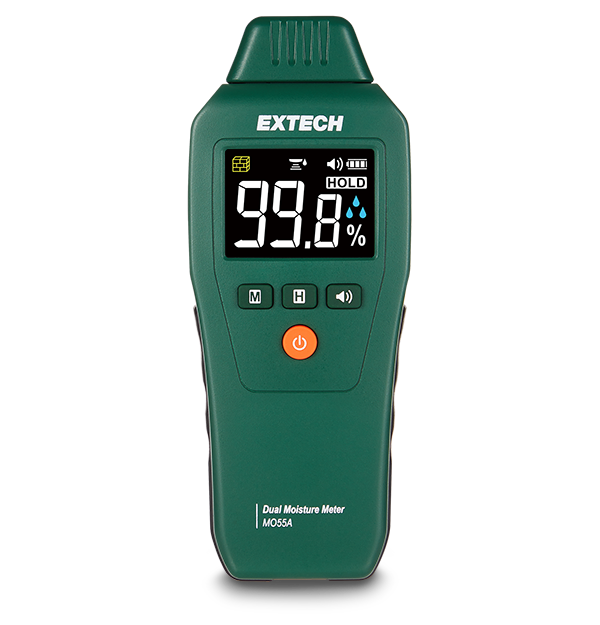

Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
Especificaciones
| Especificaciones generales | |
|---|---|
| Contenido de humedad relativa (sin pin) | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |
| Contenido de humedad WME (con pin) | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| Contenido de humedad WME, resolución máx. (con pin) | 0.1% |
| Precisión básica de contenido de humedad relativa WME (con pin) | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| Principio de medición | Electrical resistance (pins); Capacitance (pinless) |
| Profundidad de medición | Pinless < 25 mm (1 in) |

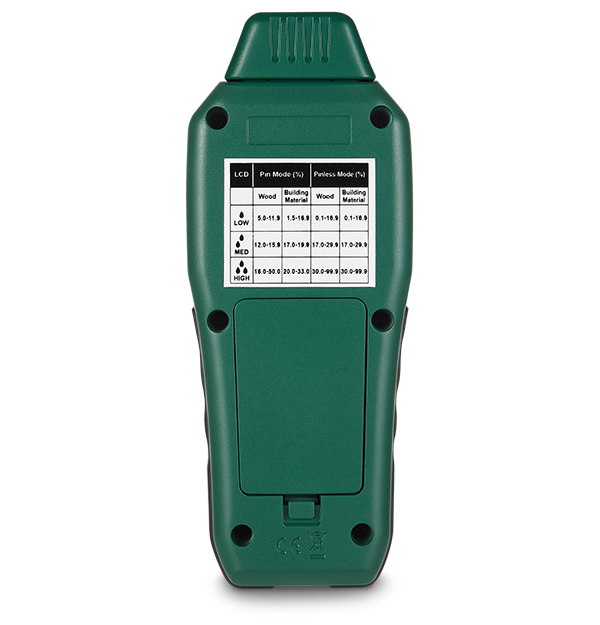

| Rango de medición | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| Rango de temperatura de almacenamiento | 0°C to 50°C (32°F to 122°F); < 85% RH |

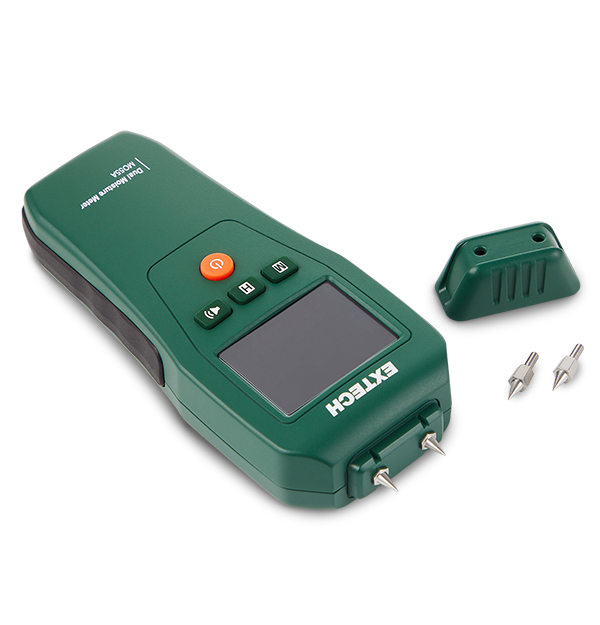

| Tipo de sensor | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| Detalles adicionales | |
|---|---|
| Alimentación | Auto Power Off after approx. 3 minutes |
| Certificaciones | CE, UKCA |
| Condiciones operativas | 5°C to 45°C (41°F to 113°F); < 80% RH |
| Dimensiones | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| Garantía | 2 years |
| Pantalla | Backlit Color LCD |
| Peso | 151 g (0.33 lb) excluding batteries |
| Tipo de batería | 3 × 1.5 V, AAA batteries |
