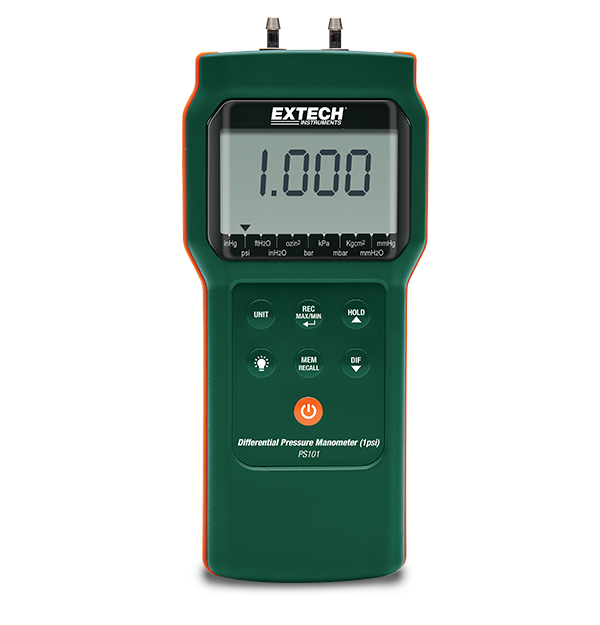

Extech PS101
Differential Pressure Manometer (1psi)
The Extech PS101 Differential Pressure Manometer is ideal for field, manufacturing, or lab/R&D use. It offers a 1 psi range, readings in 11 units, and high resolution. The manometer also features a large LCD display with backlighting, data hold, auto power off/disable, and a zero function for offset correction or measurement. This product is complete with 6 AAA batteries, two connection hoses, and a hard carrying case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Presión (bares) | 0.069bar |
| Presión (bares), precisión básica | ±1% full scale |
| Presión (bares), resolución máx. | 0.001bar |
| Presión (in H2O) | 27.68inH₂O |
| Presión (in H2O), precisión básica | ±1% full scale |
| Presión (in H2O), resolución máx. | 0.01inH₂O |
| Presión (in Hg) | 2.036inHg |
| Presión (in Hg), precisión básica | ±1% full scale |
| Presión (in Hg), resolución máx. | 0.001inHg |
| Presión (kg cm²), resolución máx. | 0.001kgcm ² |
| Presión (kg/cm²) | 0.07kgcm ² |
| Presión (kg/cm²), precisión básica | ±1% full scale |
| Presión (kPa) | 6.89kPa |
| Presión (kPa), precisión básica | ±1% full scale |
| Presión (kPa), resolución máx. | 0.01kPa |
| Presión (mbares) | 68.9mbar |
| Presión (mbares), precisión básica | ±1% full scale |
| Presión (mbares), resolución máx. | 0.1mbar |
| Presión (mm Hg) | 51.7mmHg |
| Presión (mm Hg), precisión básica | ±1% full scale |
| Presión (mm Hg), resolución máx. | 0.1mmHg |
| Presión (mm H₂O) | 703mmH₂O |
| Presión (mm H₂O), precisión básica | ±1% full scale |
| Presión (mm H₂O), resolución máx. | 1mmH₂O |
| Presión (oz in²) | 16.00ozin ² |
| Presión (oz in²), precisión básica | ±1% full scale |
| Presión (oz in²), resolución máx. | 0.01ozin ² |
| Presión (pies H2O) | 2.307ftH₂O |
| Presión (pies H2O), precisión básica | ±1% full scale |
| Presión (pies H2O), resolución máx. | 0.001ftH₂O |
| Presión (psi) | 1psi |
| Presión (psi), precisión básica | ±1% full scale |
| Presión (psi), resolución máx. | 0.001psi |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AAA (1.5V) batteries |
| Certificaciones | CE |
| Dimensiones | 6.7 × 3.1 × 1.4" (169 × 78.3 × 34.4mm) |
| Garantía | 2 years |
| Peso | 7oz (200g) |
