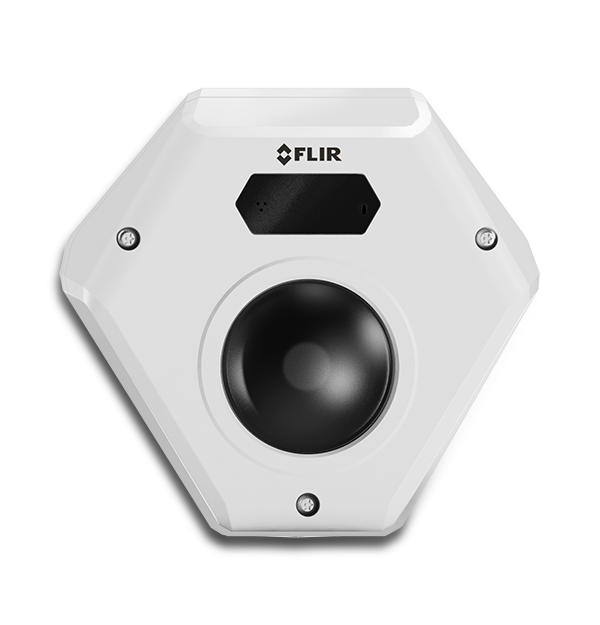

Ariel™ CC-3408-01-I
8 Megapixel Visible Security Corner Camera
The Flir Ariel 8 MP Corner Camera features a unique corner-shape form factor and extended FOV lens that provides ceiling-to-floor and wall-to-wall coverage. Thanks to its built-in video analytics and discrete infrared illumination, the Ariel Corner Camera is an ideal solution for any deployment that requires full coverage from a single camera, including correctional institutions, healthcare facilities, building lobbies, and elevators.
A rugged, no-ligature housing resists tampering, yet its sleek design makes it suitable for both industrial and commercial locations.
The camera's specialty lens provides ceiling-to-floor and wall-to-wall coverage with no blind spots.
The camera delivers extreme color sensitivity and IR-illumination that is imperceptible to the human eye.
Specifiche
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A |
| MTBF [hrs] | 526,279 (30°C); 149,537 (60°C) |
| ONVIF Compliance | Profiles S, G, M, and T |
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| Cyber Security | |
|---|---|
| Security | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy: Protect from multiple failure login |
| Environmental | |
|---|---|
| Humidity | 10%–90% (non-condensing) |
| Operating Temperature | -10°C to ~55°C (14°F to ~131°F), IR off Heater not required |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| General | |
|---|---|
| AES | 1/1 to 1/32,000 |
| BLC | Yes, ON/OFF in linear mode |
| Compression | Enhanced H.265 main profile + Enhanced H.264 main/high/baseline Profile + MJPEG |
| Day/Night Mode | Yes |
| Dimensions | 150 × 82 × 52 mm (59 × 32.3 × 20.5 in) |
| Enclosure | Metal IK10 vandal resistant/IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | PoE IEEE802.3af (class 0), DC 12 V, 24 V AC |
| Power Connection | RJ45, DC, AC |
| Power Consumption | 12.95 W |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130 dB |
| Tamper Detection | Yes |
| Unit Weight | Net: 1.04 kg (2.29 lb) Gross: 1.39 kg (3.06 lb) |
| Warranty | According to Flir RMA Policy and Process Notice document |
| System Integration | |
|---|---|
| Angle of Illumination | Full 90° |
| Bi-directional Audio | Line in and Microphone built in, G.711/G.726/AAC/LPCM, Line out |
| Distance | 10 m (32.80 ft) |
| Ethernet | 10/100/1000 Mbps, auto sensing, half / full duplex |
| Input | 2 dry alarm contacts, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| LED Type | High-efficiency SMD |
| Network Protocol | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP |
| Output | 1 relay contact max. 350 V DC/AC, 130 mA |
| Peak Emission Wavelength [nm] | 850 nm |
| Remote Configuration | Via web browser or supported VMS |
| Supported Web Browser | Firefox, Chrome, Edge, Safari |
| Visible Camera | |
|---|---|
| AGC | Auto |
| Bandwidth | Configurable between 64 kbps and 20 Mbps |
| DSS | 1/4 (1/4) – 1/60 (50) NTSC (PAL) |
| Image Sensor | 1/2.3” |
| Lens Type | 2.8 mm, f/2.2, 132.9° HFOV × 98.1° VFOV @ 4000 × 3000 |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D |
| Sensitivity | B/W: 0.077; Color: 0.37 |
| Sensor Resolution | 8 MP |
| Signal to Noise Ratio | ±45 dB |
| White Balance | Auto |
| Video & Recording | |
|---|---|
| Rate Control | LBR, CBR, VBR |
| Resolution Range | Scalable from SVGA to 8 MP |
| SD Card Recording | microSD/microSDHC/microSDXC size up to 1 TB |
| Video Motion Detection | Yes |
