Non-destructive testing (NDT), advanced radiometry, electronic component design, and target signature characterizations all benefit from the X8580-HS InSb's high definition, 1280 × 1024 thermal sensor that detect small temperature differences with very little noise. Plus, the X8580-HS SLS—with its longwave, strained layer superlattice detector—offers shorter snapshot speeds so you can capture crisp stop motion images of high-speed events.
제로 드롭 프레임. 제로 타협.
고속, 고해상도
FLIR X-시리즈
중요한 테스트의 순간을 놓치지 마세요
과학, 방위 및 항공우주 연구와 같은 까다로운 환경에서 중요한 테스트 이벤트는 몇 초 동안만 지속될 수 있으며 데이터 누락으로 비용이 많이 들 수 있습니다. 따라서 고속 이벤트를 완벽하게 캡처하고 스트리밍하기 위해서는 고성능 적외선 카메라가 필수적이며, 데이터 누락과 프레임 손실이 발생하지 않습니다.
X-시리즈 제품군의 최신 제품 FLIR X6980-HS 및 X8580-HS를 소개합니다. 이 고속 고화질 적외선 카메라는 탁월한 데이터 스트리밍 기능을 제공하여 프레임이 손실되지 않도록 보장합니다.
테스트 비용이 많이 드는 분야에서는 한 프레임만 손실되어도 중요한 데이터가 누락될 수 있습니다.
Never Miss Crucial Data Again
Eradicate Data Loss and Dropped Frames
Record directly to the removable 4 TB solid-state drive (SSD) for extended periods of time at the fastest frame rate without dropping any frames.
Effortlessly Share Data
Simplified setup when recording directly to a PC with the latest 10 GigE, CXP 2.1, and CameraLink Full high-speed interfaces.
Record High-speed Events Precisely
Proprietary triggering, synchronization, and accurate IRIG time stamping system ensures precise on-time recording.
Motorized Lenses
FLIR has made the next generation of X-Series cameras compatible with its full suite of LWIR and MWIR motorized lenses. These cameras are custom-designed for optimal performance, enabling more precise and remote focus adjustments. They also integrate fully with Research Studio for enhanced control.
FLIR Research Studio
Research Studio provides users with a quick and efficient way to display, record, analyze, and report accurate thermal data. With a streamlined, intuitive GUI and unique feature set, users at all levels can effortlessly record and evaluate thermal data from multiple FLIR cameras and recorded sources simultaneously.
Choose the camera that’s right for your research
FLIR X8580-HS: High Definition Images, Fast Frame Rates
FLIR 전문가와 상담하여 자세한 정보를 얻고 데모 일정을 잡으십시오.

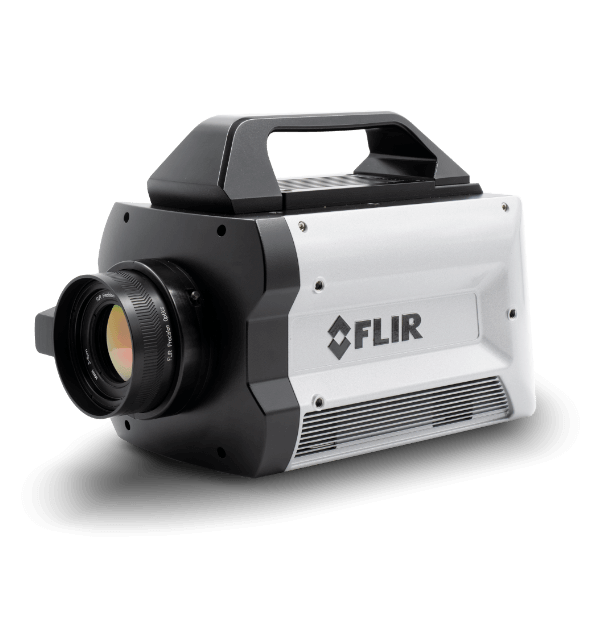

FLIR X6980-HS InSb™
- 640 × 512 thermal resolution
- FLIR indium antimonide (InSb) detector
- 1.5–5.0 µm spectral range
Resolution
640 × 512
Detector Pitch
25 µm
Spectral Range
1.5–5.0 µm

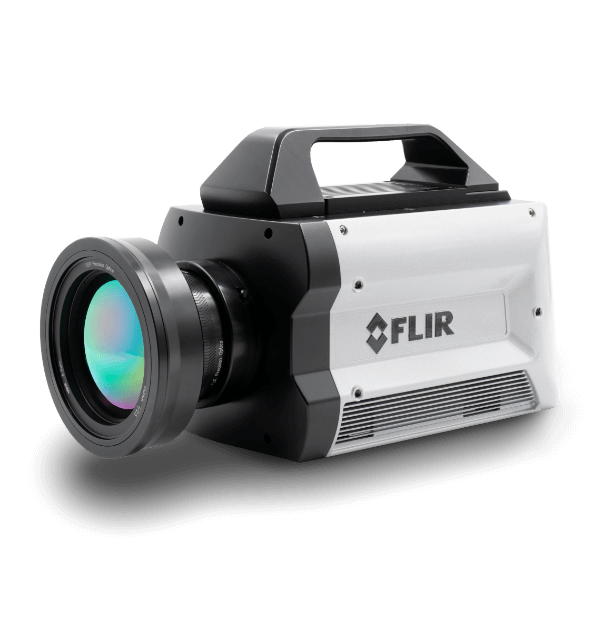

FLIR X6980-HS SLS™
- 640 × 512 thermal resolution
- Strained layer superlattice (SLS) detector
- 7.5 µm (lower), 11.5–12.5 µm (upper) spectral range
Resolution
640 × 512
Detector Pitch
25 µm
Spectral Range
7.5 µm (lower), 11.5–12.5 µm (upper)

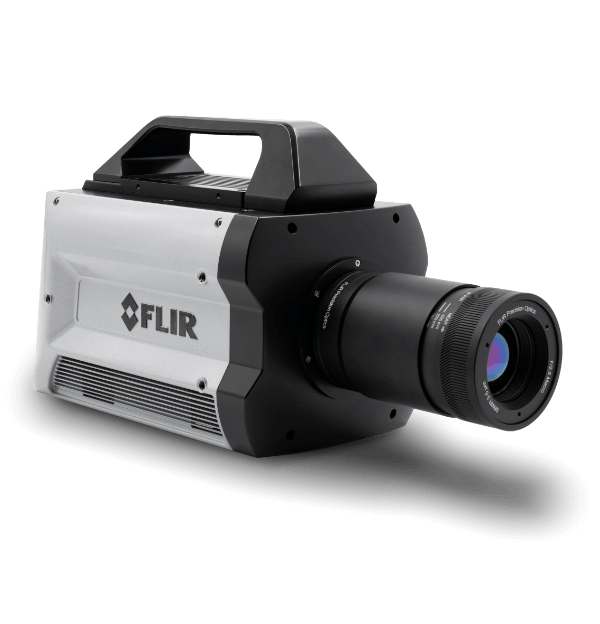

FLIR X8580-HS InSb™
- 1280 × 1024 thermal resolution
- FLIR indium antimonide (InSb) detector
- 1.5–5.0 µm spectral range
Resolution
1280 × 1024
Detector Pitch
12 µm
Spectral Range
FLIR X8580-HS InSb, FLIR X8582-HS InSb : 1.5 – 5.0 µm
FLIR X8581-HS InSb, FLIR X8583-HS InSb: 3.0 – 5.0 µm
FLIR X8580-HS SLS™
- 1280 × 1024 thermal resolution
- Strained layer superlattice (SLS) detector
- 7.5 µm (lower), 11.5–12.5 µm (upper) spectral range
Resolution
1280 × 1024
Detector Pitch
12 µm
Spectral Range
7.5 µm (lower), 11.5–12.5 µm (upper)
Resolution
640 × 512
Resolution
640 × 512
Resolution
1280 × 1024
Resolution
1280 × 1024
Detector Pitch
25 µm
Detector Pitch
25 µm
Detector Pitch
12 µm
Detector Pitch
12 µm
Spectral Range
1.5–5.0 µm
Spectral Range
7.5 µm (lower), 11.5–12.5 µm (upper)
Spectral Range
FLIR X8580-HS InSb, FLIR X8582-HS InSb : 1.5 – 5.0 µm
FLIR X8581-HS InSb, FLIR X8583-HS InSb: 3.0 – 5.0 µm
Spectral Range
7.5 µm (lower), 11.5–12.5 µm (upper)
