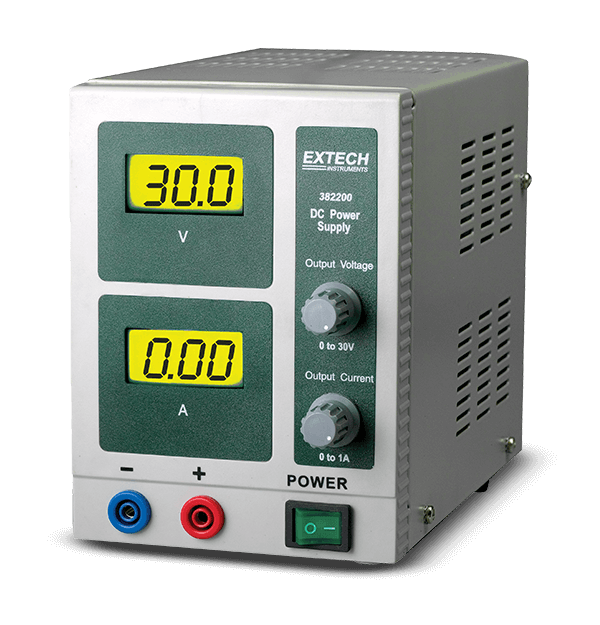

Extech 382200
30 V / 1 A DC-Netzteil mit einem Ausgang
Digitales Konstant-Spannungs/-Strom-Gleichspannungsnetzteil mit Doppel-LCD
Specifications
| Allgemeine technische Daten | |
|---|---|
| Line Current Regulation | <0,2 % + 3 mA |
| Line Voltage Regulation | <0,01 % + 3 mV |
| Load Current Regulation | <0,2 % + 3 mA |
| Load Voltage Regulation | <0,01 % + 2 mV |
| Output Current | 0–1,00 A DC |
| Output Current Basic Accuracy | ±2 % des Messwerts |
| Output Voltage | 30,0 V DC |
| Output Voltage Basic Accuracy | ±1,5 % des Messwerts |
| Ripple and Noise | <0,5 m / <3 mA |
| Weitere Details | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6 Zoll) |
| Power | 115 V / 230 V, 50/60 Hz |
| Warranty | 2 Jahre |
| Weight | 2 kg (4,4 lbs) |
