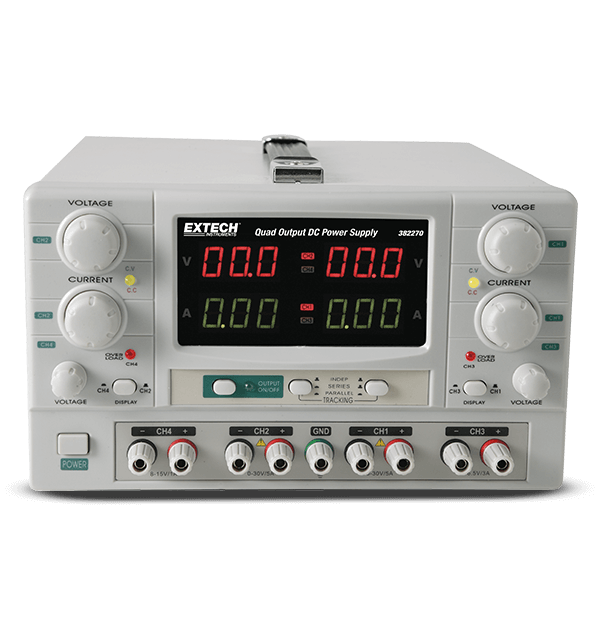

Extech 382270

Gleichstromnetzteil mit Vierfach-Ausgang

382270 ist ein Gleichstromnetzteil mit Vierfach-Ausgang. Es verfügt über zwei Ausgänge von 0 bis 30 V/0 bis 5 A sowie zwei feste Zusatzausgänge von 3 bis 6,5 V/3 A und 15 V/1 A. Die beiden 30-V-Ausgänge können parallel für 10 A oder in Reihe für 60 V kombiniert werden. Inklusive vier Messleitungspaaren (Bananenstecker zu Krokodilklemme) und einem Wechselstromkabel.

Specifications

Allgemeine technische Daten
Line Current Regulation 2 mA ±3 mA
Line Voltage Regulation 0,1 mV ±3 mV
Load Current Regulation 2 mA ±5 mA
Load Voltage Regulation 0,5 mV ±3 mV
Output Current 0 bis 5 A, 0 bis 5 A, 3 A (fest), 1 A (fest)
Output Voltage 0 bis 30 V, 0 bis 30 V, 3 bis 6,5 V, 8 bis 15 V
Ripple and Noise <0,5 mVeff
Weitere Details
Dimensions 260 x 160 × 370 mm
Power 110 bis 240 VAC, 50/60 Hz
Warranty 2 Jahre
Weight 12 kg
