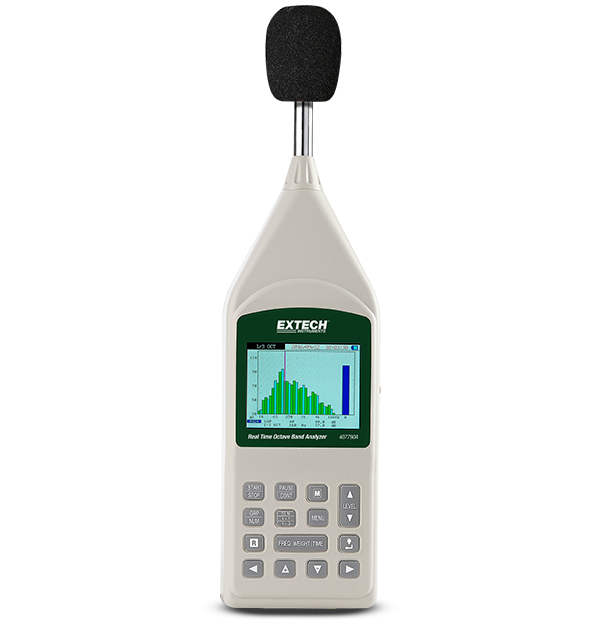

Extech 407790A
Real Time Octave Band Analyzer
Extech’s Type 2 Integrating Sound Level Meter with Octave and 1/3 Octave Band Real Time is displayed on a large 3.5" 320x240 TFT color backlit LCD.
20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB
3.5" (320x240) TFT color LCD with backlight feature displays Leq, LE, Lmax, Lmin, Lp, L05, L10, L50, L90, L95
Optional microphone extension cable for measurements in enclosures and other remote locations (407764-EXT)
사양
| General | |
|---|---|
| Analog Output | AC output: 1 Vrms (at full scale); DC output: 3.0V, 25mV/dB |
| Frequency Bandwidth | 25Hz ~ 10kHz |
| Memory | microSD card (included) |
| Microphone | Condenser, 0.52" (13.2mm) |
| Response Time | Fast, Slow, 10ms (t), I |
| Sound Range (dB) | 20 to 90dB, 20 to 100dB, 20 to 110dB, and 30 to 120dB, 40 to 130dB |
| Sound Range (dB) Basic Accuracy | ±1.5dB (ref 94dB @ 1kHz) |
| Weighting | A, C, and Z |
| Additional Details | |
|---|---|
| Certifications | 407790A-NIST_S: CE, NIST 407790A_S: CE |
| Dimensions | 13.6 × 3.9 × 2.4" (345 × 100 × 60mm) |
| Power | 4 × C (1.5V) batteries / external supply 6V DC, 1A |
| Warranty | 2 years |
| Weight | 33.5oz (950g) |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
