Extech 407860
Heavy Duty Vibration Meter

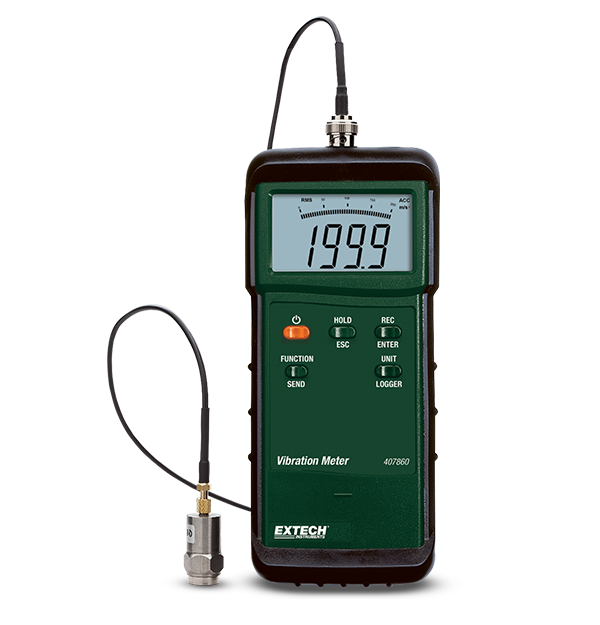

407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual store with recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with remote sensor, magnetic mount, 9V battery, holster with stand, and case.
사양
| General | |
|---|---|
| Acceleration | 656ft/s² (200m/s²) |
| Acceleration Basic Accuracy | ±5% |
| Acceleration Max Resolution | 2ft/s² (0.5m/s²) |
| Displacement | 0.078in (1.999mm) |
| Displacement Basic Accuracy | ±5% |
| Displacement Max Resolution | 0.001in (0.001mm) |
| Velocity | 7.87in/s (200mm/s) |
| Velocity Basic Accuracy | ±5% |
| Velocity Max Resolution | 0.02in/s (0.5mm/s) |
| Additional Details | |
|---|---|
| Certifications | 407860-NIST_S: CE, NIST 407860_S: CE |
| Dimensions | 7.1 × 2.9 × 1.3" (180 × 72 × 32mm) |
| Power | 1 × 9V battery |
| Warranty | 3 Years |
| Weight | 0.87lbs (395g) with probe |
Export Restrictions
이 페이지에 포함된 정보는 최종 제품의 사양에 따라 국제 무기 거래 규정(ITAR)(22 C.F.R. 섹션 120-130) 또는 수출 관리 규정(EAR)(15 C.F.R. 섹션 730-774)의 적용을 받을 수 있는 제품에 관한 것입니다. 요청 시 관할권과 분류를 제공합니다.
