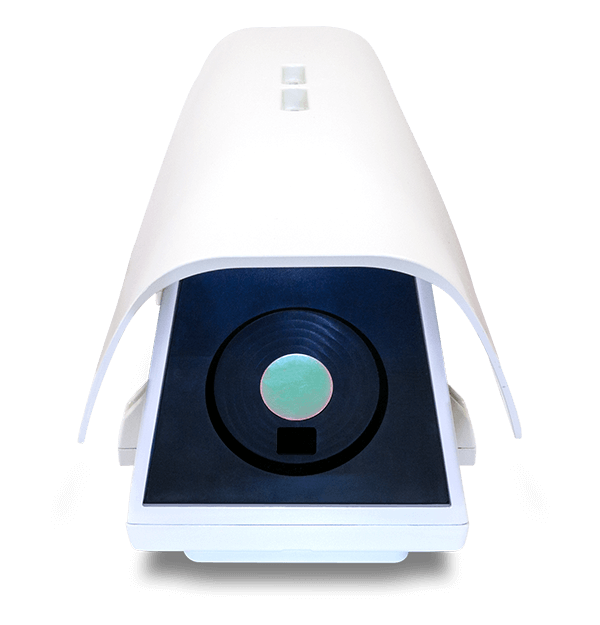

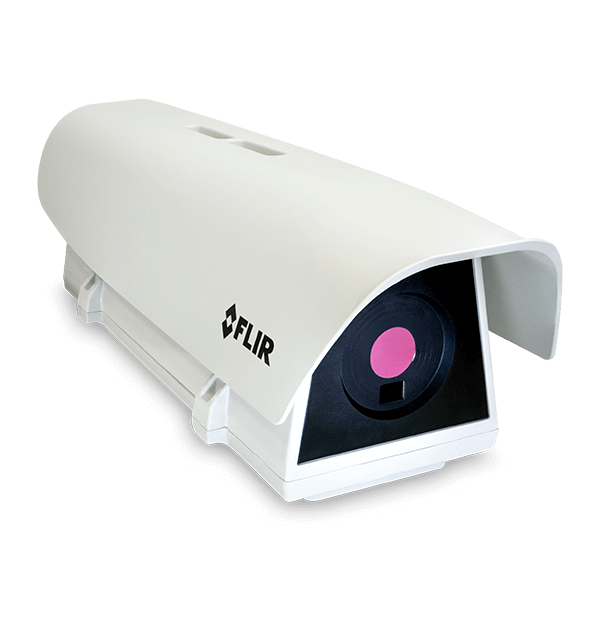

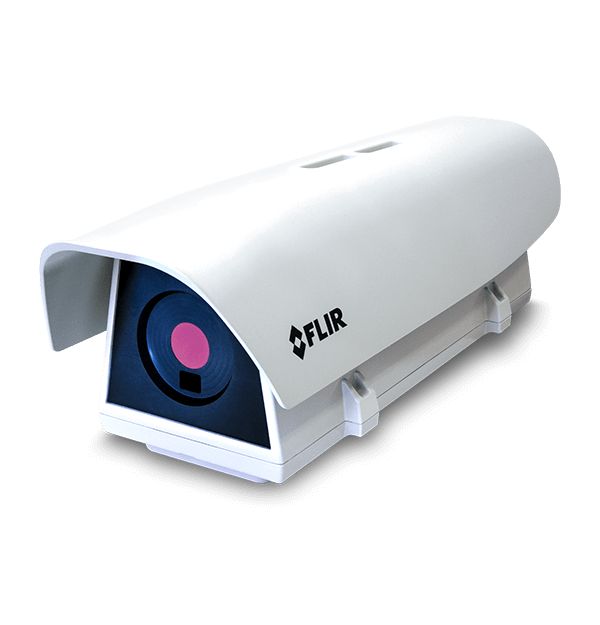

FLIR A500f/A700f Advanced Smart Sensor
Fixed-Mount Thermal Imaging Camera for Condition Monitoring and Early Fire Detection
Product Variations
FLIR A500f and A700f Advanced Smart Sensor Thermal Cameras are ideal for users who want built-in, on-camera analytics and alarm capabilities for outdoor condition monitoring and early fire detection applications. These cameras can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs. Featuring a protective housing designed to withstand harsh environmental conditions, FLIR A500f/A700f cameras combine unmatched thermal imaging with edge computing and industrial internet of things (IIoT) for simplified inclusion in new or existing networks. For VMS integrations, thermal and visible streams can be viewed independently or simultaneously. The cameras are easy to add, set up, and operate in HMI/SCADA systems, offering automation system solution providers a running start.
The protective housing can withstand temperatures between -30° to 50°C, providing a high level of protection against challenging environmental conditions and theft.
Multiple communication and control options enable easy integration into standard security and IiOT solutions including HMI/SCADA, ONVIF, Modbus, MQTT, and REST API protocol.
With up to 640 × 480 thermal resolution, remote motor focus, FSX® (Flexible Scene Enhancement) technology, and three fields of view, A500f/A700f cameras provide reliable measurements every time.
Specifications
| Highlighted | |
|---|---|
| Digital I_O connector type | Terminal block inside housing |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital Output Purpose | • As a function of alarm, output to external device • Fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric |
| Ethernet Interface | Wired |
| EMC | EN50130-4, EN61000-6-3, EN55022 Classe B, FCC Part. 15 Class B |
| Mounting | Bought separately, pole and wall adaptors available |
| f number | 14°: 1.5 24°: 1.3 42°: 1.1 80°: 1.3 |
| Image Fequency | |
| Image Frequency | 30 Hz |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15° to 35°C (59° to 95°F) and object temperature above 0°C (32°F) |
| Alarm Functions | On any selected measurement function, digital in, and internal camera temperature |
| Alarm Output | • Digital out • E-mail (SMTP) (push) • Ethernet/IP • File transfer (FTP) (push) • Modbus TCP server (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video |
| Communication & Data Storage | |
|---|---|
| Digital input purpose | NUC, NUC disable, alarm |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital I_O connector type | Terminal block inside housing |
| Digital I_O isolation voltage | 500 VRMS |
| Digital Output Purpose | • As a function of alarm, output to external device • Fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric |
| Ethernet | For control, result, image, and power |
| Ethernet Communication | TCP/IP socket-based FLIR proprietary |
| Ethernet Connector Type | IP67 rated RJ45 port |
| Ethernet Interface | Wired |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet Protocols | • EtherNet/IP • IEEE 1588 • Modbus TCP • MQTT • SNMP • TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | 10/100Base-T |
| Image Storage | Records up to 100 FLIR radiometric JPEG; storage as function of: alarm, scheduling, or user interaction (camera web) |
| Multicast | Yes |
| RS_232 | M8 A-coded, male connector directly on camera, inside housing |
| Imaging & Optical | |
|---|---|
| Contrast Enhancement | FSX® / Histogram equalization (IR only) |
| Detector Pitch | A500f: 17 µm A700f: 12 µm |
| Detector Time Constant | A500f: Typical 10 ms A700f: Typical 7 ms |
| f number | 14°: 1.5 24°: 1.3 42°: 1.1 80°: 1.3 |
| Field of view [FOV] | 14°: 14° × 10° 24°: 24° × 18° 42°: 42° × 32° 80°: 80° × 63° |
| Focal Length | 14°: 29 mm 24°: 17 mm 42°: 10 mm 80°: 5 mm (0.19 in) |
| Focal Plane Array [FPA] | Uncooled microbolometer |
| Focus | Motorized focus, manual & on-command automatic (scene contrast method) |
| Image Fequency | |
| Image Frequency | 30 Hz |
| IR Resolution | A500f: 464 × 348 A700f: 640 × 480 |
| Lens Identification | Automatic |
| Minimum Focus Distance | 14°: 1.0 m (3.28 ft) 24°: 0.15 m (0.49 ft) 42°: 0.15 m (0.49 ft) 80°: 0.1 m (3.9 in) |
| MSX | 14°, 24° Yes, 42°: Yes 80°: NA |
| Multi_Streaming | Yes |
| Overlay | With/ Without |
| Radiometric IR video streaming | RTSP protocol to FLIR Atlas SDK |
| Readout | Measurement results: • Ethernet/IP • Modbus TCP server (pull) • Modbus TCP client (push) • MQTT (push) • REST API (GET/POST) • Measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960) • Web interface |
| Spatial resolution [IFOV] | Dependent on the IR resolution of the camera: 320 × 240 pixels: 5.2mrad/pixel 464 × 348 pixels: 3.6 mrad/pixel 640 × 480 pixels: 2.6 mrad/pixel |
| Spectral Range | 7.5–14 µm |
| Streaming Resolutions | A500f-14°, A500f-24°, A500f-42°: Video stream 0: 640 × 480 pixels
Video stream 1: 1280 × 960 pixels
Radiometric stream: 464 × 348 pixels A500f-80°: Video stream 0: 640 × 480 pixels Radiometric stream: 464 × 348 pixels A700f-14°, A700f-24°, A700f-42°: Video stream 0: 640 × 480 pixels Video stream 1: 1280 × 960 pixels Radiometric stream: 640 × 480 pixels A700f-80°: Video stream 0: 640 × 480 pixels Radiometric stream: 640 × 480 pixels |
| Video Streaming | RTSP protocol |
| Visual Resolution | 1280 × 960 |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15° to 35°C (59° to 95°F) and object temperature above 0°C (32°F) |
| Alarm Functions | On any selected measurement function, digital in, and internal camera temperature |
| Alarm Output | • Digital out • E-mail (SMTP) (push) • Ethernet/IP • File transfer (FTP) (push) • Modbus TCP server (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video |
| Atmospheric transmission correction | Based on inputs of distance, atmospheric temperature, and relative humidity |
| Automatic hot and cold detection | Max./min. temperature value and position shown within box |
| Measurement Corrections | Global object parameters; local parameters per analyze function |
| Measurement Presets | Yes |
| Measurement Tools | 10 spotmeters, 10 boxes or mask polygons, 3 Deltas (difference any value/reference/external lock), 2 isotherms (above/below/interval), 2 iso-coverage, 1 reference temperature, 2 lines, 1 polyline Maximum 12 measurement functions at the same time. |
| Object Temperature Range | -30°C to 50°C (-22°F to 122°F) |
| General | |
|---|---|
| Housing material | Aluminium housing, sunshield in ABS |
| Size [L x W x H] | 51.5×17.7×22.9 cm (20.28×6.97×9.02 in) |
| Environmental & Certifications | |
|---|---|
| EMC | EN50130-4, EN61000-6-3, EN55022 Classe B, FCC Part. 15 Class B |
| Encapsulation | IP67 |
| Mounting | Bought separately, pole and wall adaptors available |
| ONVIF Conformance | Yes. ONVIF Profile S |
| Operating Temperature Range | -30°C to 50°C (-22°F to 122°F) |
| Power | |
|---|---|
| Power Consumption | 30W PoE, PoE+, Type 2. IEEE 802.3af, IEEE 802.3at/PoE Plus |
| User Interface | |
|---|---|
| Web interface | Yes |
Accessories
- A500f/A700f Corner Mount Adaptor (T911918ACC)
- A500f/A700f Pole Adapter Ø 65 mm, max 140 mm (T911919ACC)
- A500f/A700f Reinforcing Support Plate for Rough, Uneven or Weak Walls (T911920ACC)
- A500f/A700f Wall Mount Bracket (T911916ACC)
- A500f/A700f Pole Adapter Ø 210 mm, max 225 mm (T911917ACC)
