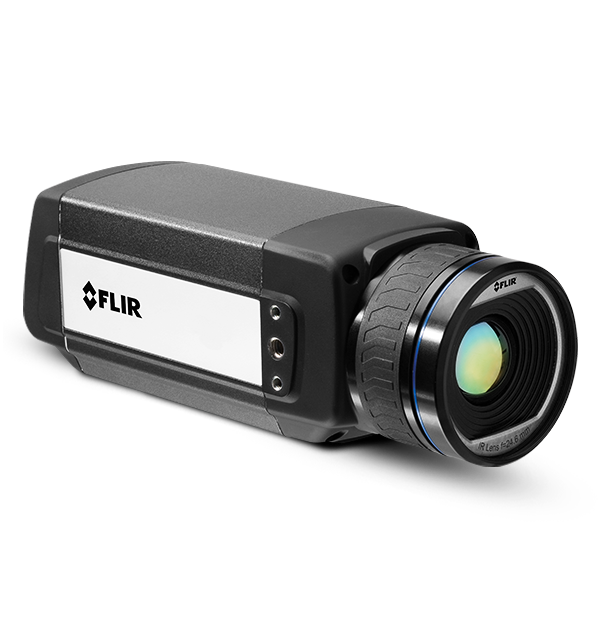

FLIR A655sc
High-Resolution Science Grade LWIR Camera
Product Variations
With its uncooled detector, high resolution, and all of the cutting-edge functionality scientists and researchers have come to expect from FLIR, the A655sc brings affordable research and science thermal imaging and measurement to a whole new level.
Thermal Imaging For Product R&D
The FLIR A655sc features a 640 x 480 pixel microbolometer that detects temperature differences down to <30 mK, for accuracy at longer distances.
Streams full-frame 16-bit data at 50 Hz, or up to 200 Hz with windowing, for high-speed processes.
GigE Vision allows fast image transfer using low cost standard cables up to 100 meters.
사양
| Highlighted | |
|---|---|
| Resolution | 640 × 480 |
| Detector Pitch | 17 µm |
| Spectral Range | 7.5 – 14.0 µm |
| Detector Type | Uncooled Microbolometer |
| Camera f-number | f/1.0 |
| Dynamic Range | 16-bit |
| NETD | <30 mK |
| Frame Rate [Full Window] | 50 Hz |
| Max Frame Rate [at Min Window] | 200 Hz (640 × 120) |
| Standard Temperature Range | –40°C to 150°C (–40°F to 302°F) 100°C to 650°C (212°F to 1,202°F) |
| Optional Temperature Range | Up to 2,000°C (3,632°F ) |
| Focus | Automatic or Manual (Motorized) |
| Imaging & Optical | |
|---|---|
| Available Lenses | NA |
| Camera f-number | f/1.0 |
| Close-up Lenses/Microscopes | Close-up 25 µm, 50 µm, 100 µm |
| Detector Pitch | 17 µm |
| Detector Type | Uncooled Microbolometer |
| Digital Data | Via PC Using ResearchIR Software |
| Digital Data Streaming | Gigabit Ethernet (50/100/200 Hz) USB (25/50/100 Hz) |
| Dynamic Range | 16-bit |
| Field of View | A655sc, FOV 15°: 15° × 11° (19° diagonal) A655sc, FOV 25°: 25° × 19° (31° diagonal) A655sc, FOV 45°: 45° × 34° (55° diagonal) A655sc, FOV 7°: 7° × 5.3° (8.7° diagonally) A655sc, FOV 80°: 80° × 64.4° (92.8° diagonal) |
| Focus | Automatic or Manual (Motorized) |
| Frame Rate [Full Window] | 50 Hz |
| Max Frame Rate [at Min Window] | 200 Hz (640 × 120) |
| NETD | <30 mK |
| Resolution | 640 × 480 |
| Spectral Range | 7.5 – 14.0 µm |
| Subwindow Modes | User-Selectable 640 × 240 or 640 × 120 |
| Time Constant | <8 ms |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C or ±2% of Reading |
| Bump/Vibration | 25 g (IEC 60068-2-29) / 2 g (IEC 60068-2-6) |
| Optional Temperature Range | Up to 2,000°C (3,632°F ) |
| Standard Temperature Range | –40°C to 150°C (–40°F to 302°F) 100°C to 650°C (212°F to 1,202°F) |
| General | |
|---|---|
| Packaging Size | 360 x 180 x 550 mm (14.2 x 7.1 x 21.7 in.) |
| Size [L x W x H ] w/o Lens | 216 × 73 × 75 mm (8.5 × 2.9 × 3.0 in) |
| Weight | A655sc, FOV 15°: 0.92 kg (2.03 lb.) A655sc, FOV 25°: 0.90 kg (1.98 lb.) A655sc, FOV 45°: 0.94 kg (2.07 lb.) A655sc, FOV 7°: 1.61 kg (3.55 lb.) A655sc, FOV 80°: 1.17 kg (2.58 lb.) |
| Power | |
|---|---|
| Power | 12/24 VDC, 24 W Absolute Max. |
| Environmental & Certifications | |
|---|---|
| Encapsulation | IP 30 (IEC 60529) |
| Mounting | 1/4"-20 (on three sides), 2 x M4 (on three sides) |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F ) |
액세서리
- IR lens, 80° FOV, 6.5mm (T198065)
- Close-up IR lens, 5.8x (100 µm) with case (T198060)
- Close-up IR lens, 1.5x (25 µm) with case (T198066)
- Close-up IR lens, 2.9x (50 µm) with case (T198059)
- IR lens, 25° FOV, 24.6mm (T197922)
- IR lens, 45° FOV, 13.1mm (T197915)
- IR Lens , 7° FOV, 88.9mm (T198165)
- IR lens, 15° FOV, 41.3mm (T197914)
